3 Layers continuous roller veneer drying line plywood core veneer dryer machine for Indonesia market

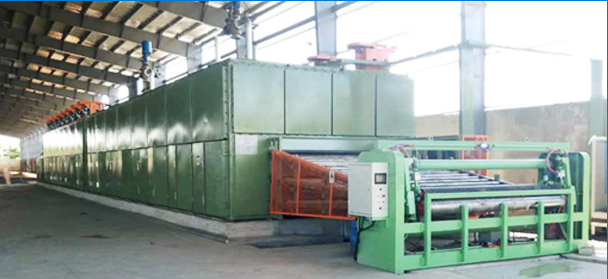

Heavy Duty Roller Veneer Dryer Machine
Specification
Name and Model
BG1333-10+3
BG1332-13+3
BG1343-15+2
Working width
2800mm
3400mm
3500mm
Working layers
3
2
4
Length of heating section
20000mm
13×2000mm=26000mm
15×2000=30000
Length of cooling section
6000mm
3×2000=6000mm
2×2000=4000
Total power
155.7kw
128.5kw
280.2kw
Transport motor
7.5kw×3=22.5kw
11kw×2=22kw
18.5kw×2=37kw
Heating motor
11kw×10=110kw
7.5kw×13=97.5kw
15kw×15=225kw
Cooling motor
4kw×3+3kw×3=21kw
3kw×3=9kw
4kw×2+4kw×2=16kw
Output power
2.2kw×1=2.2kw
2.2kw×1=2.2kw
2.2kw×1=2.2kw
Veneer transportation speed
1.5~15 m/min
1.5~15m/min
1.5~15m/min
Saturated steam pressure
0.6~1.0 Mpa
0.6~1.0 Mpa
0.6~1.0 Mpa
Drying temperature
150~170 ℃
150~170 ℃/170-190 ℃
170-190 ℃
Steam consumption
3300 kg/h
3000 kg/h
3600kg/h
Veneer density
~620 kg/m³
~620 kg/m³
~590 kg/m³
Available veneer thickness
1.5~3.5mm
1.5~3.5mm
1.5~4.5 mm
Veneer initial moisture content
~80%
~80%
50-60 %
Veneer final moisture content
6 ±2%
6 ±2%
10-20 %
Load ratio
85%
85%
85%
Drying capacity
2.6~2.9m³/h
2.5~2.8m³/h
~6.7 m³/h
Roller spacing
333mm
333mm
333mm
Overall dimension(L*W*H)
45620×5150×4150mm
43820×5050×2800mm
52720×5850×4720mm
Total weight
~79000kg
~73000
~132000
Product Description
Veneer dryer machine is mainly used to dry the core veneer to solve high moisture content problem after peeling.
The machine can dry veneers of various thickness and moisture contents. Any wood spices can be dried in this machine.
It is especially suitable for the drying of thick veneers(1-6mm).

The working layers quantity can be designed according to client’s requirement.

Its length is large, so occupies large area.



Continuous veneer drying equipment, high efficiency and large capacity.

Heating section can be designed according to client’s capacity requirement.

For more product

 Square tube veneer dryer machine

It is suitable for drying the core veneer to solve high moisture content problemafter peeling. Low cost, low investment, installed dimension is small.
The working layers quantity can be designed according to client’s requirement.



Breathing type veneer dryer
It applies for core veneer’s lamination, drying and leveling. The core veneer after drying will be with high flatness and sufficient shrinkage.

There is simultaneous opening and closing system and dry the veneer uniformly.
We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !
