Specification
|
Model
|

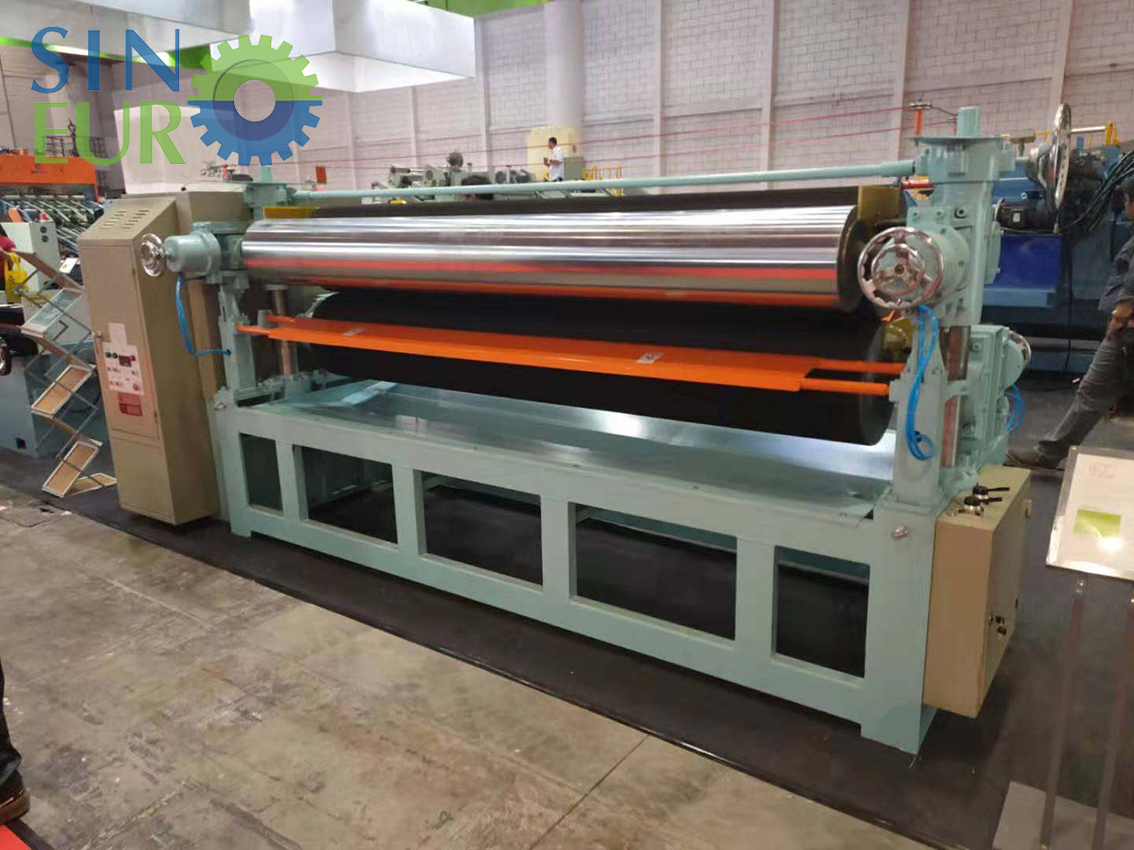

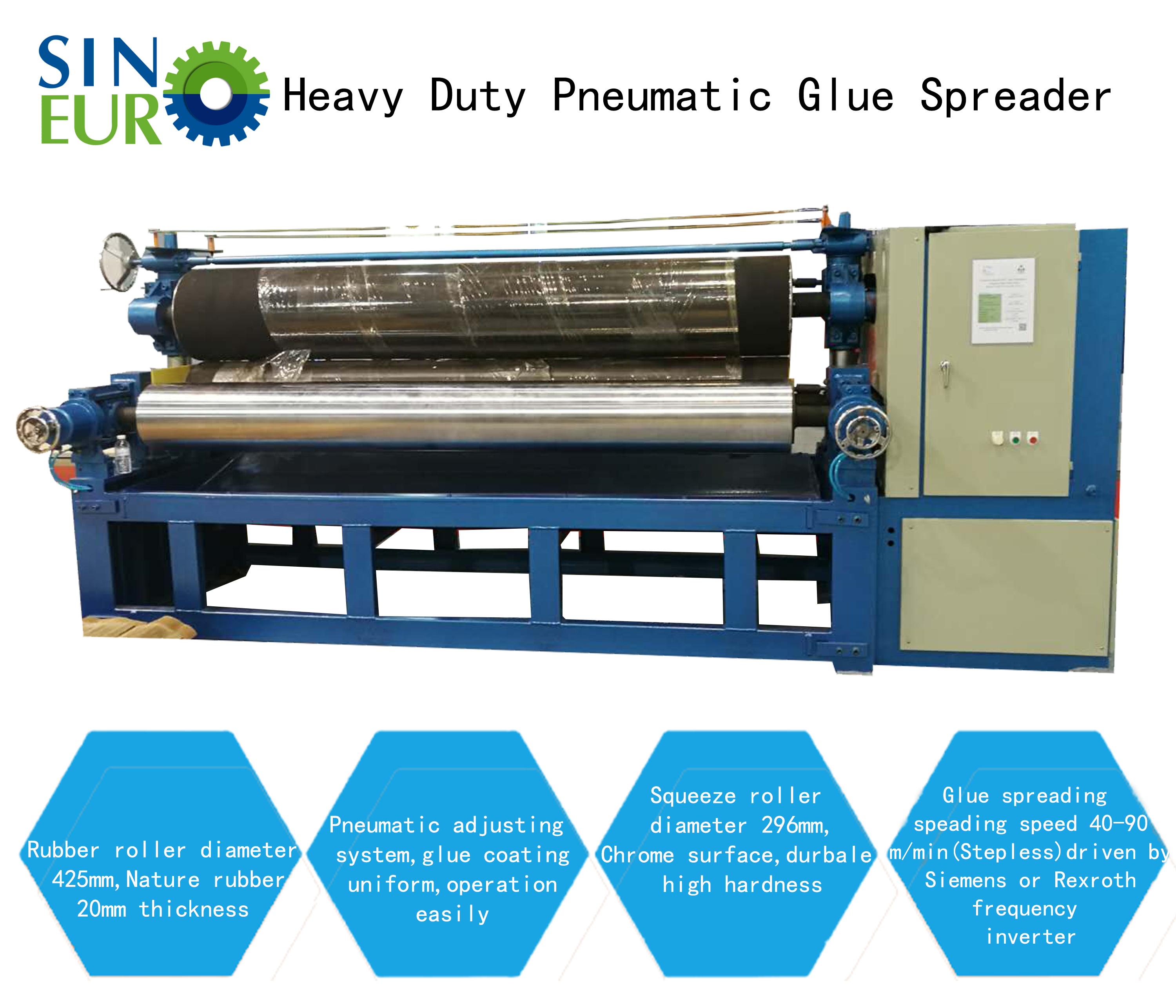

8FT Pneumatic Glue spreader
|
|||
|
Length of roller
|
2700mm(8ft)
|
|||
|
opening
|
1-30mm
|
|||
|
Squeezing rubber roller diameter*tube lengh
|
Φ290*2700mm
|
|||
|
Glue roller diameter*tube lengh
|
Φ420*2700mm
|
|||
|
Glue spreading speed
|
40-90m/min(Stepless) driven by frequency inverter
|
|||
|
Main drive roller power
|
7.5kw
|
|||
|
Out feeding roller power
|
0.75kw
|
|||
|
Overall Dimension
|
4600*2800*1800mm
|
|||
|
Total weight
|
5500kg
|
|||

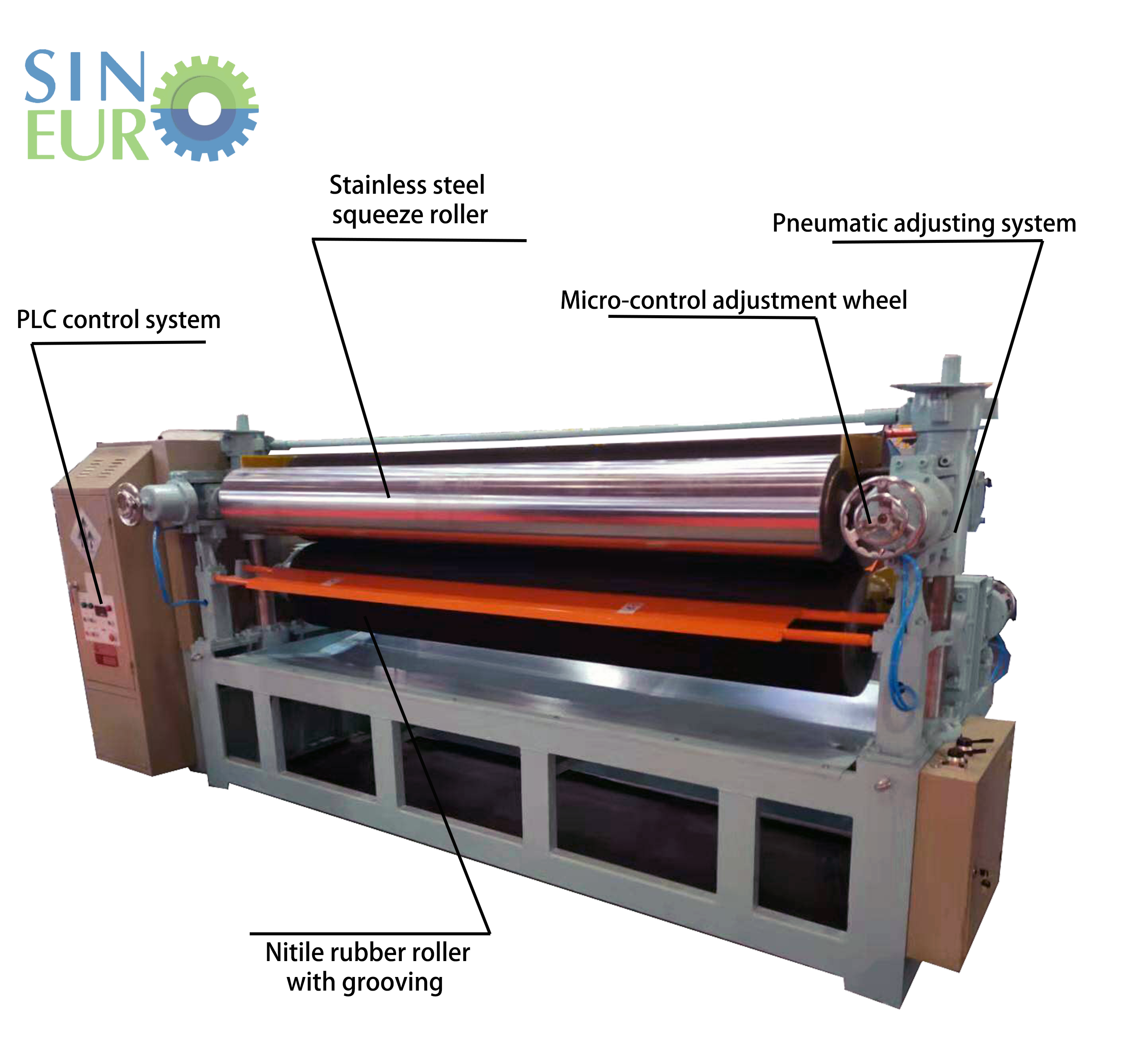

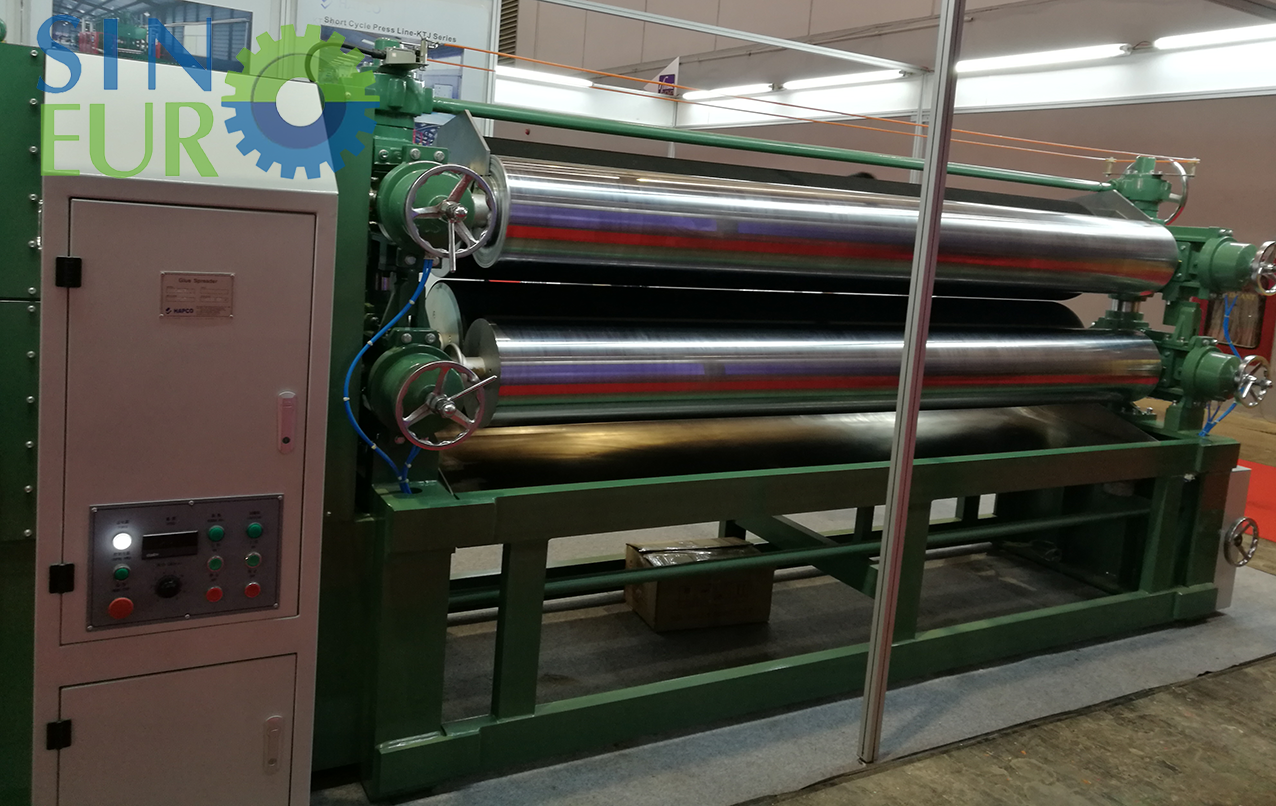

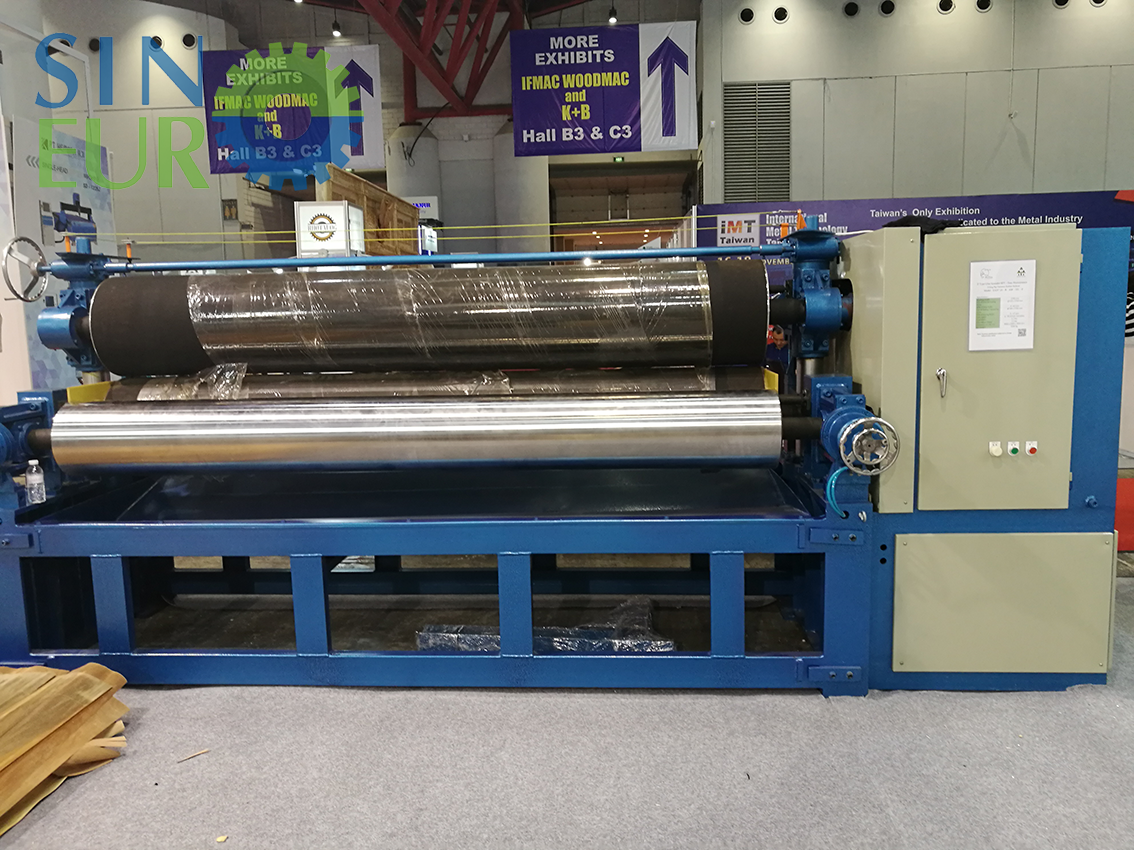

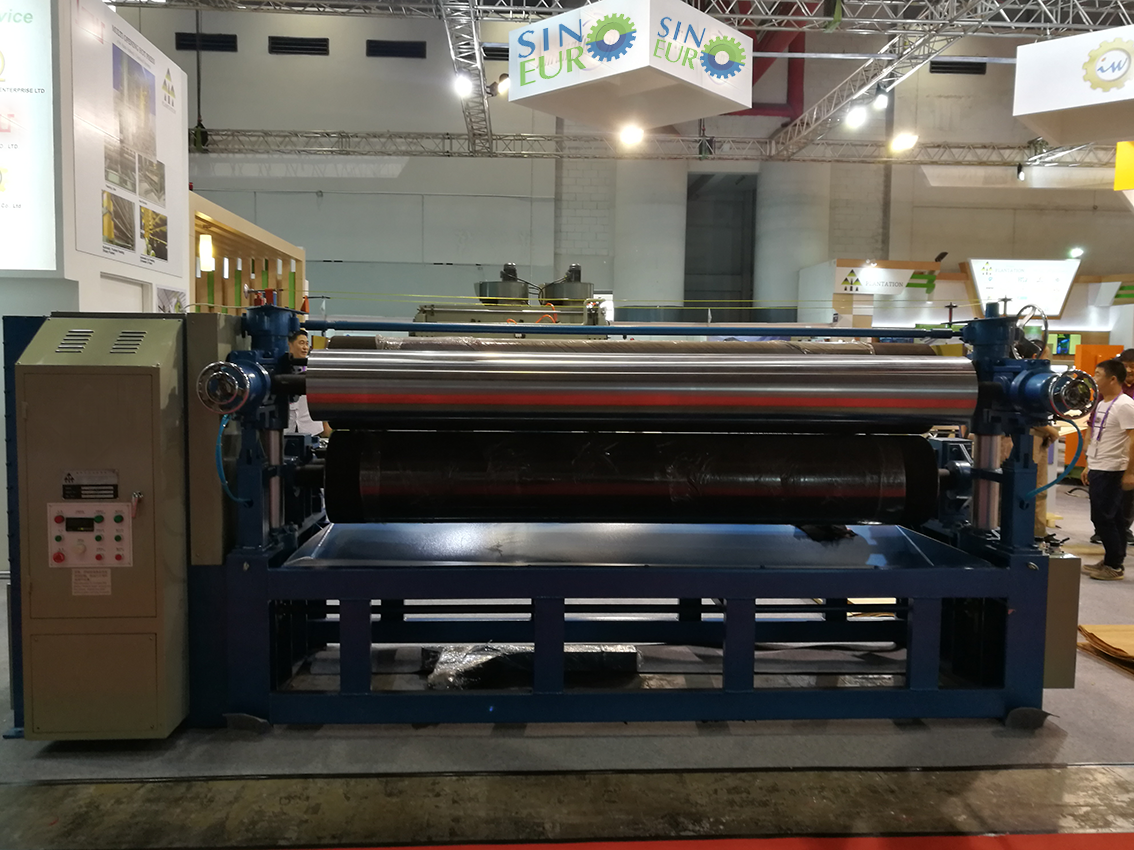

Details Images

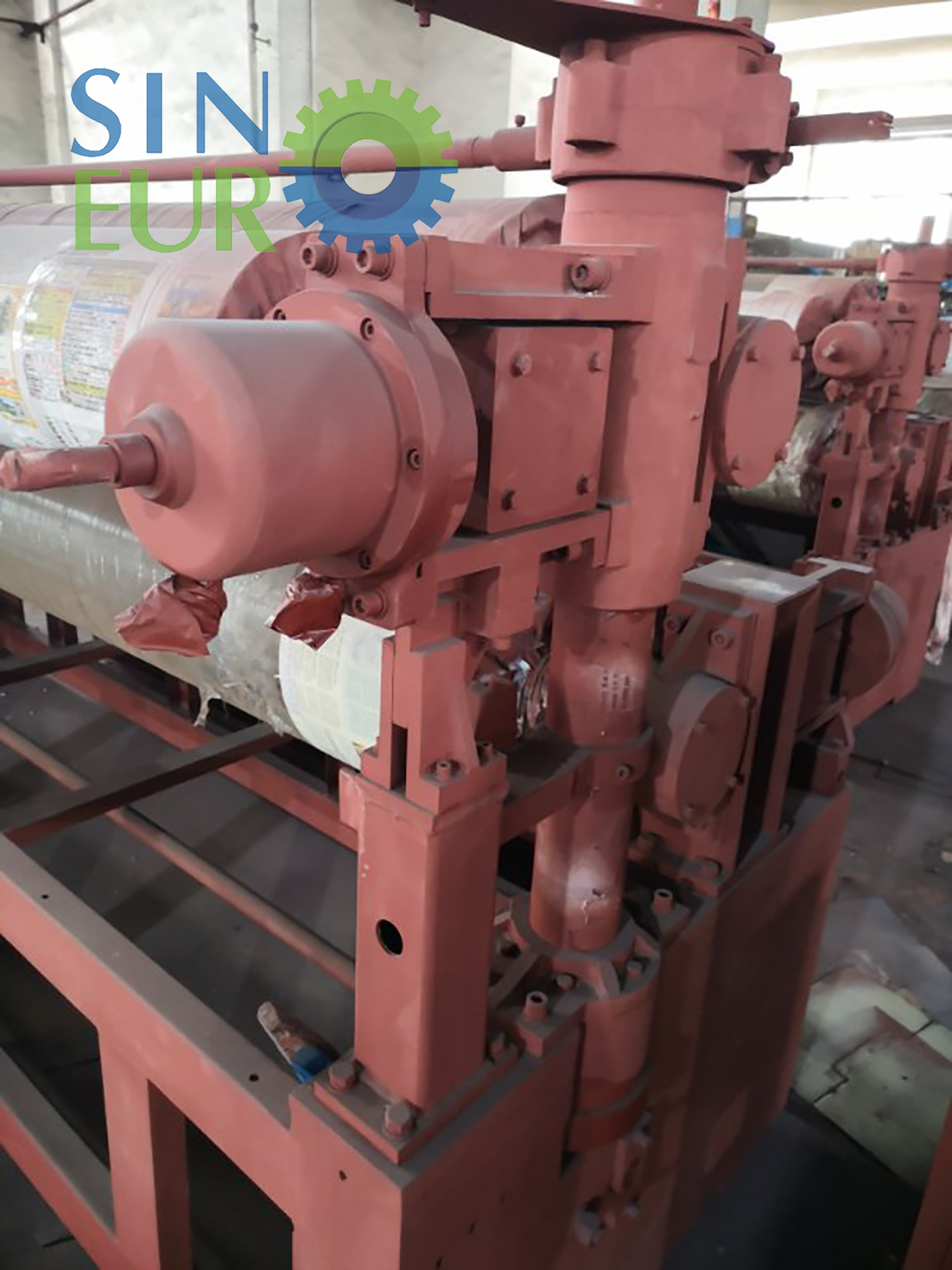

Pneumatic adjusting system
The glue coating thickness and glue coating volume is controlled by the compression air .operation easily and save manual adjusting time ,

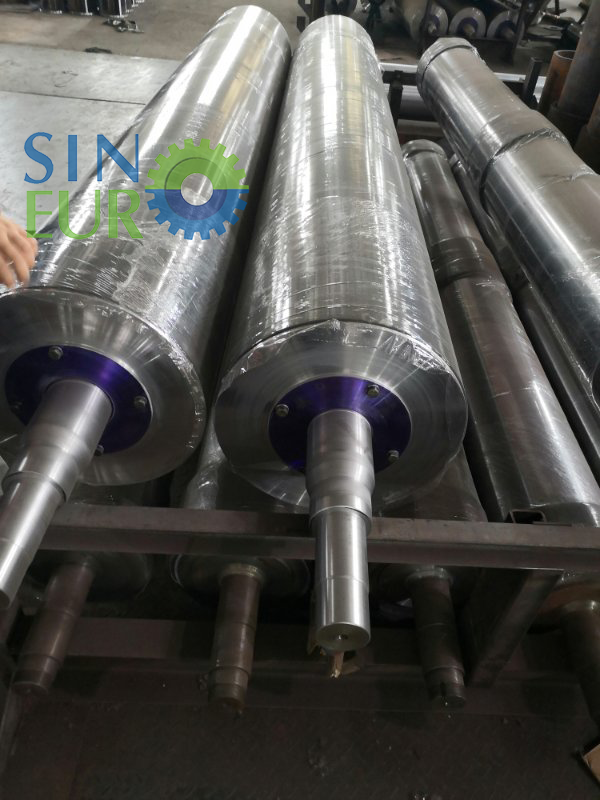

Stainless and Chrome steel squeeze roller
The squeeze roller is made by stainless steel and surface is with chrome that increase the squeeze roller hardness and protect squeeze roller corrosion from the glue ,to increase its using life .
Micro-control adjustment wheel
The machine is designed micro-control adjustment wheel.the glue coating thickness and glue coating volume is adjusted in precision this guarantee uniform glue coating and to control glue coating volume big or mall in precission
Nitile rubber roller with grooving
The rubber roller is covered with 25mm Nitile natural rubber .It has high hardness ,so it is very durable ,excellent oil resistance , high wear resistance ,good heat resistance and strong adhesion.Surface has screw therad pattern,this increase rubber roller friction.
PLC control system
Control button operation system, operation easily ,it has Emergency stop button that can guarantee operation safely.
Company Introduction

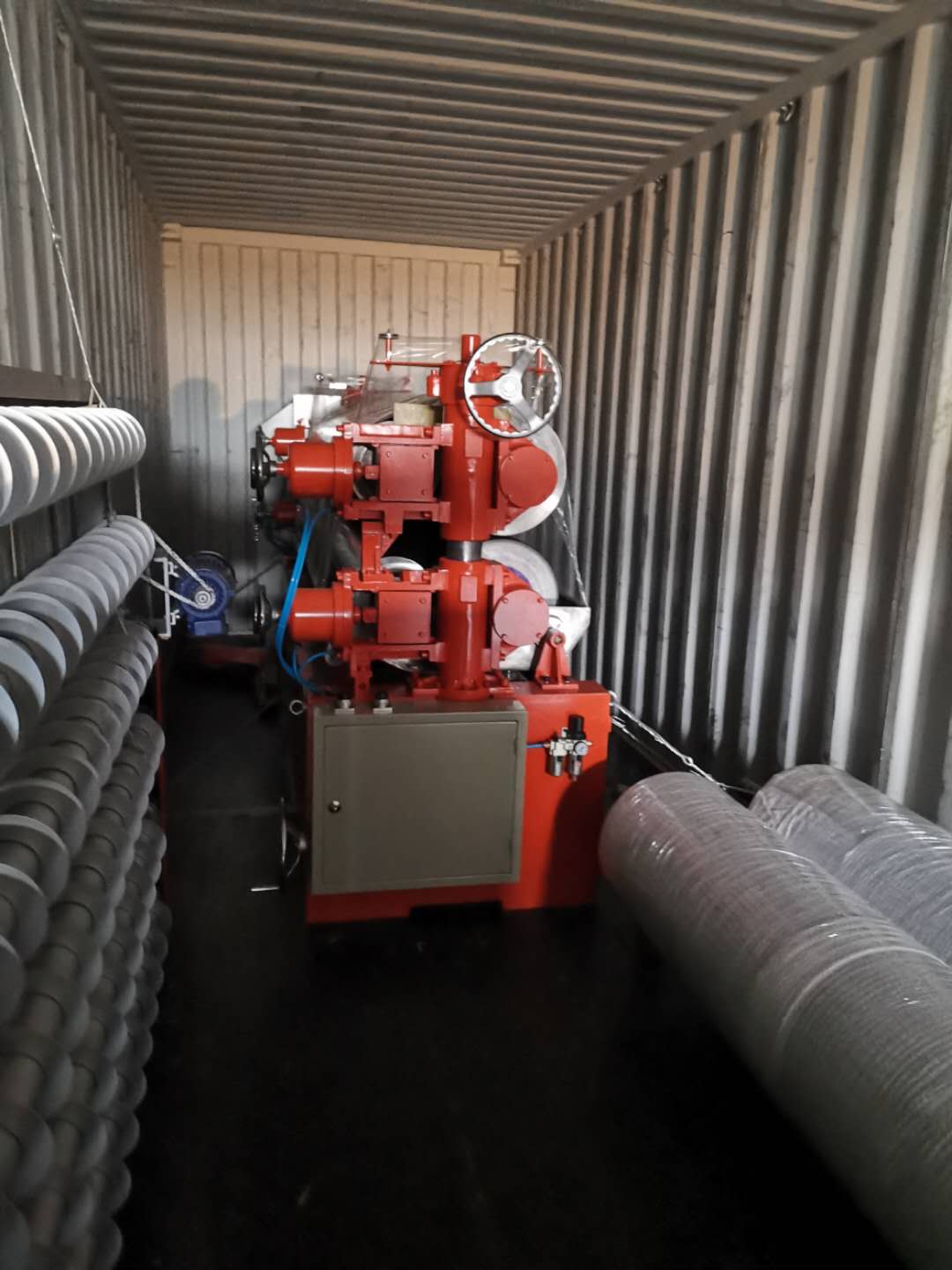

Packing & Shipping
