core veneer composer machine /Wood Veneer Finger Jointing Composer Machine

Product Description
Mark
Dadong
Model
DCBJ-9B (M)
Driver
All Servo Motor
Fuselage structure
Integral steel plate cutting
Conveying speed
0-35m/min
Capacity
300pcs/h
Working veneer width
968-1270 mm (3-4ft)
Cutting veneer length
1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)
Working veneer thickness
1.2-3.6 mm
Length of knife
1400 mm
Length of felt-board machine
3600mm
Height of felt-board machine
2500mm
Width of felt-board machine
2600mm
Length of stacking machine
4000mm
Height of stacking machine
2500mm
Width of stacking machine
2200mm
PLC
Taiwan Delta
Output
300-350pcs/hour (4x8ft)
Weight
5500kg

 Core veneer jointing Machine Application
Core veneer jointer machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient

Detailed Images

Integral steel plate cutting frame, precise structure connection, long service life.

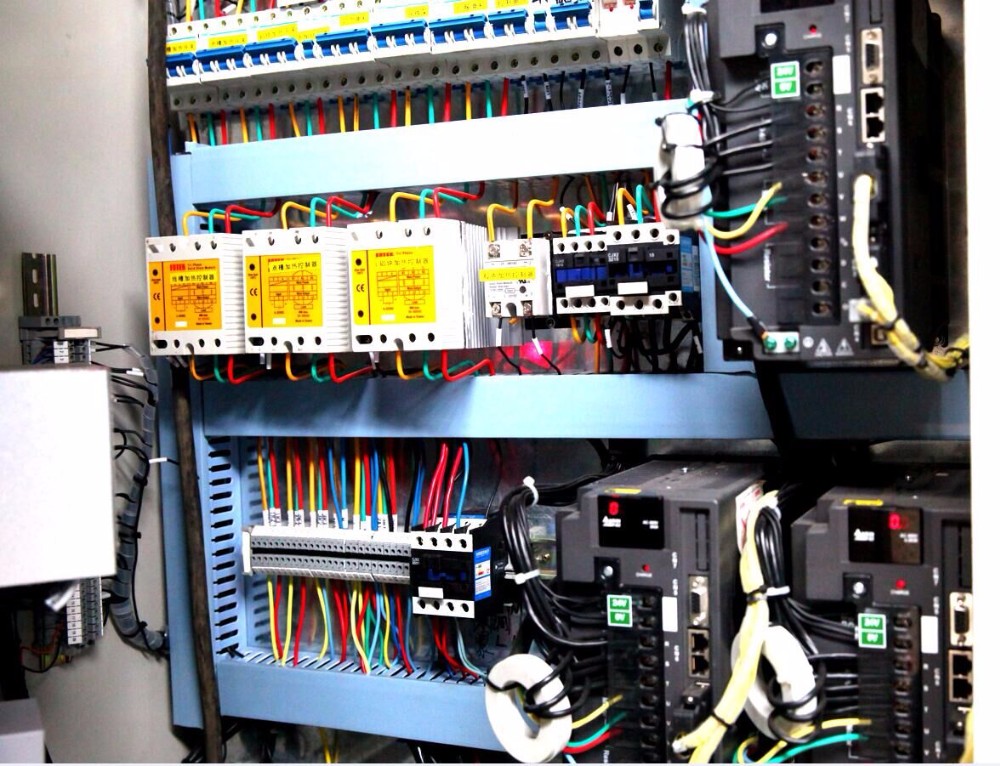

Taiwan Delta Brand or Germany Siemens Brand Servo motor.

Taiwan Delta Brand PLC,

Germany FESTO Brand glue rotary cylinder, high-quality glue

Main Features
1. PLC computer control, one worker operation, automatic process, labor cost saving
2. High precision detecting, cutting size in minimum.
3. Servo control makes it precise location and effectively control the overlap seam.
4. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.
5. We use international famous brand parts such as Taiwan Delta, Germany Siemens

Certifications
Our Service

Pre-sale
1.Free consultation about the equipment.
2.Reasonable purchasing plan and the production line designing plan are offered according to the clients’ special requirment to help you to select the most suitable machinery.
3.Welcome to visit our factory and check our machine.
During-sales
1. We inspect and test the machine before delivery.
2.We are willing to freely tran your technicist and first-line operator.
After-sales
1.Engineers are available to service overseas.
2.Videos about installing and debuging the equipment.

Conpany information

Sinoeuro Group is a manufacturer of wood working machinery with well equipped testing facilities and strong technical force.
1. Leading manufacturer of woodworking machinery in China, found in 1994. specialize in this field for more than 20 years.
2. Almost 20 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

FAQ

                                                                       Why Choose Us

1. We Are Factory ( Not a Dealer )
We sell production machines designed together with clients, so it will be just and only for you, my dear. All machineries from Manufactory are made by ourselves, with lower price, good quality and assured full after service.
So please buy machine from factory.
2.We provide best service
Pre-sale services: enthusiasm and profession
We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.
In-sale services: be your assistant and servant
Send 2~12 technicians(adjustable according to the degree of automatic ) to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free.
After-sale services
We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.

To establish long term friendship, we will regularly pay return visit to customers.
