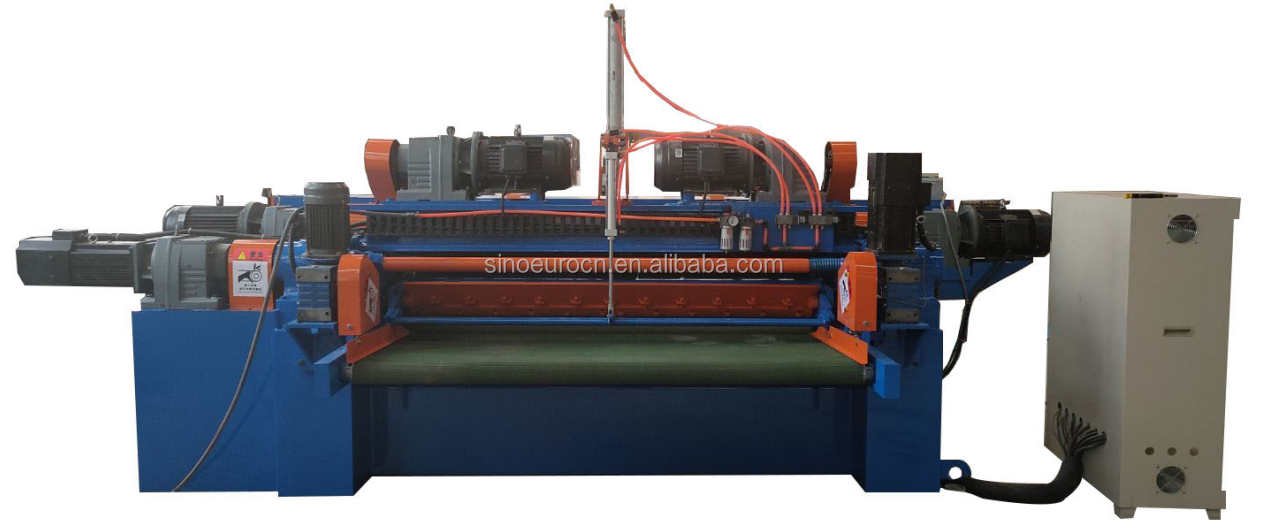

Product Description
Peeling hardwood and softwood with different thickness,such as Birch,Beech,Albasia,Poplar,ect.
Thickness is 1.7mm
Scars part peeling is very smooth
|
Model
|
48m/min normal type speed fix
|
55m/min heavy duty speed fix
|
40-80m/min heavy duty speed adjustable
|
|
Peel length
|
1300mm
|
1300mm
|
1300mm
|
|
Opening
|
500mm
|
500mm
|
500mm
|
|
Remain logs diameter
|
32mm
|
24mm
|
24mm
|
|
Peel thickness
|
1.0-2.8mm
|
0.5-5.0mm
|
0.5-5.0mm
|
|
Cutting length
|
660-1300mm
|
500-2600mm
|
500-2600mm
|
|
Peel speed
|
48m/min
|
55m/min
|
40-80m/min
|
|
Single roller power
|
7.5kw
|
5.5kw×2pcs
|
7.5kw×2pcs
|
|
Double roller power
|
7.5kw
|
5.5kw×2pcs
|
7.5kw×2pcs
|
|
Feeding power
|
5.5kw
|
7.5kw or 11kw(Servo motor)
|
7.5kw or 11kw(Servo motor)
|
|
Total power
|
23.8kw
|
33.2kw
|
42.6kw
|
|
Roller diameter
|
125mm
|
125mm
|
125mm
|
|
Long-range control
|
None
|
Have
|
Have
|
|
Voltage
|
380-515v
|
380-515v
|
380-515v
|
|
Bottom structure
|
160*65*3mm(Channel)
|
8mm(Steel)
|
8mm(Steel)
|
|
Total weight
|
4000kg
|
6000kg
|
6700kg
|
|
Overall dimension
|
4300*2500*1200mm
|
4200*2500*1200mm
|
4800*2500*1500mm
|
Detailed Images
1.Key Technology
Special structure to adjust the blade gap, our machine adopt double roller moving method,during peeling the blade gap will change automaticlly according to the log diameter.
The screw part is fully close, dust and veneer chips will not enter the screw.
2.Servo Motor
The feeding motor is 11kw famous brand servo motor.It can guarantee machine working stable and precise.The thickness of the veneer is accurate.
The cutting motor is 3.7kw servo motor,have enough power to cut the thick veneer,keep smooth cutting edges and precise size.
3.Guide Rail
The guide rail part make by high temperature quenching and CNC cutting method,increases the hardness and ensure guide rail has unlimited service life.
Avoid the wear problem like ordinary screw, and ensure machine operation no deviation, veneer width and thickness are accurate,produce high quality veneer.
Avoid the wear problem like ordinary screw, and ensure machine operation no deviation, veneer width and thickness are accurate,produce high quality veneer.
4.Electroplating Roller
All peeling rollers have been quenched and electroplating,increases the peeling roller hardness and sevice life.
The roller pattern have different type.We will choose the right roller pattern acoording to clients differen wood species.
5.Schneider Electric
Our electric is international famous brand Schneider or Siemens. Easy to get at anywhere.
Company Introduction
Related Products
Clients feedback
FAQ
1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.
2. How can we trust your factory?
We sincerely invite you come to our factory to verify the real situation of our machine, and know more about our
factory.
3. What about the paymet and delivery?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.
2. How can we trust your factory?
We sincerely invite you come to our factory to verify the real situation of our machine, and know more about our
factory.
3. What about the paymet and delivery?
Payment: by T/T 30% down payment, 70% upon machinery completion.
Delivery: After finishing all the payment
Package: Standard packing or as clients’ requirement
4.What’s your machine warranty?
Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it.All kinds of mold can be made by customer’s requirements
Delivery: After finishing all the payment
Package: Standard packing or as clients’ requirement
4.What’s your machine warranty?
Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it.All kinds of mold can be made by customer’s requirements
5.Do you supply any formula to buyer?
yes, we supply formulas to buyer.
yes, we supply formulas to buyer.
