Product Description
|
Item
|

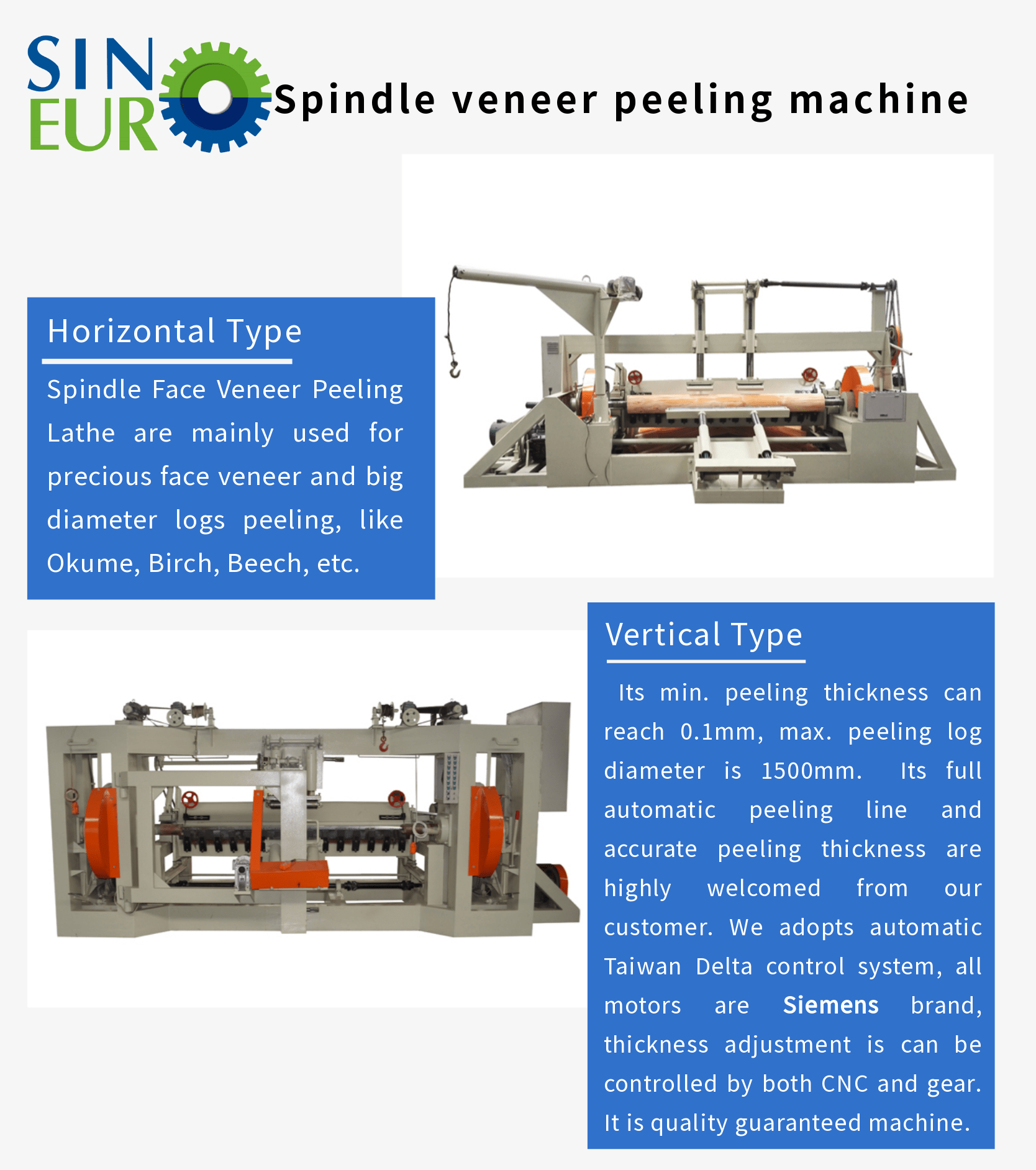

Vertical Type
|
Horizontal Type
|

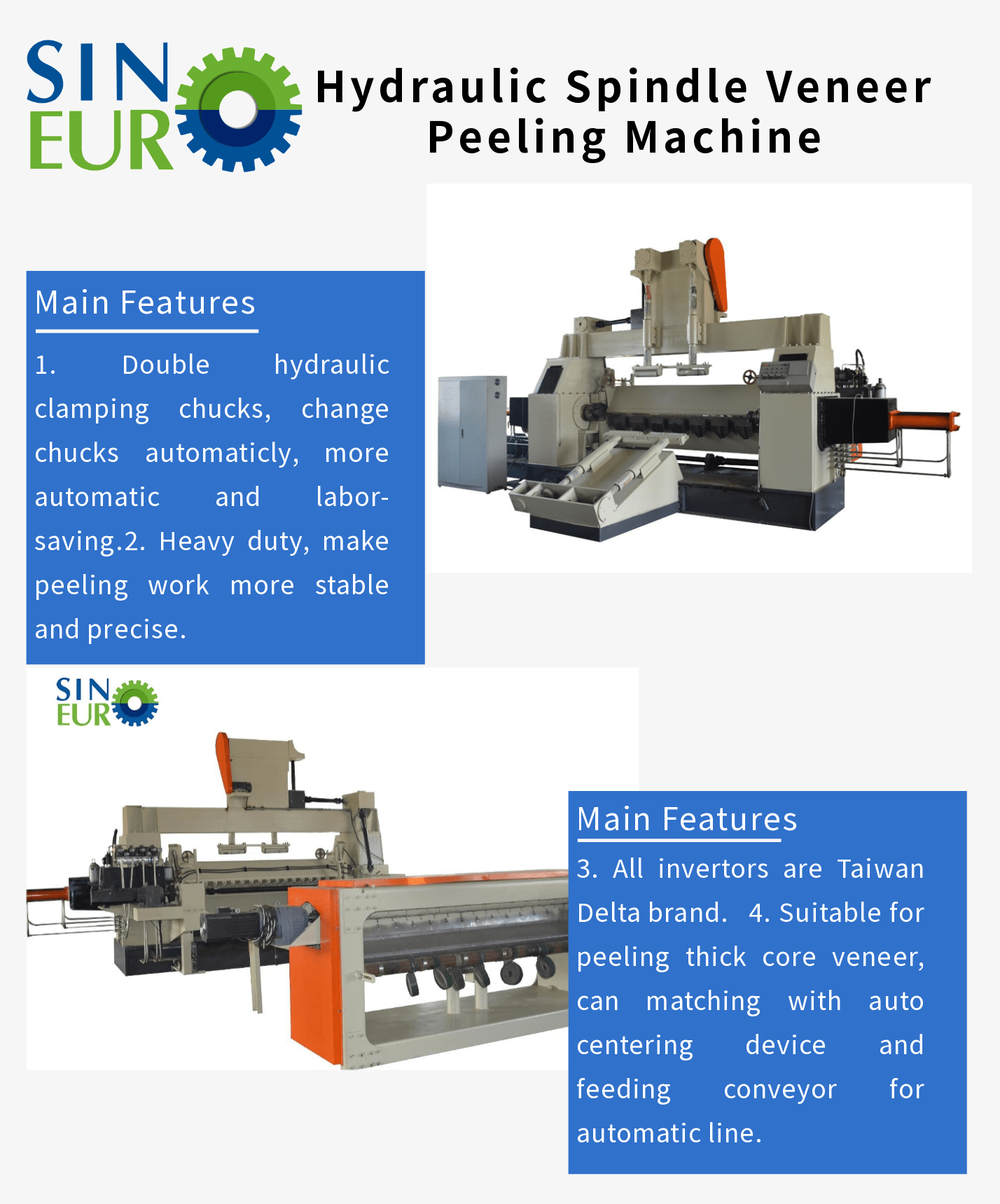

Hydraulic Spindle
|
||
|
Max. Log Diameter
|
1500mm
|
900mm
|
1300mm
|
||
|
Peeling Thickness
|
0.1-2.6mm
|
0.1-2.6mm
|
1-10mm
|
||
|
Peeling Speed
|
0-80m/min
|
0-80m/min
|
0-80m/min
|
||
|
Total Motor Power
|
40.45KW
|
40.45KW
|
69.6KW
|
||
|
Clamping Chuck
|
Double Mechanic Chuck
|
Double Mechanic Chuck
|
Double rotary Chuck
|
||
|
Total Weight
|
8000KG
|
7900KG
|
23000kg
|
||
|
Overall Dimension
|
6500mm*2350mm*2600mm
|
6500mm*2350mm*2600mm
|
8000mm*3500mm*3200mm
|
||

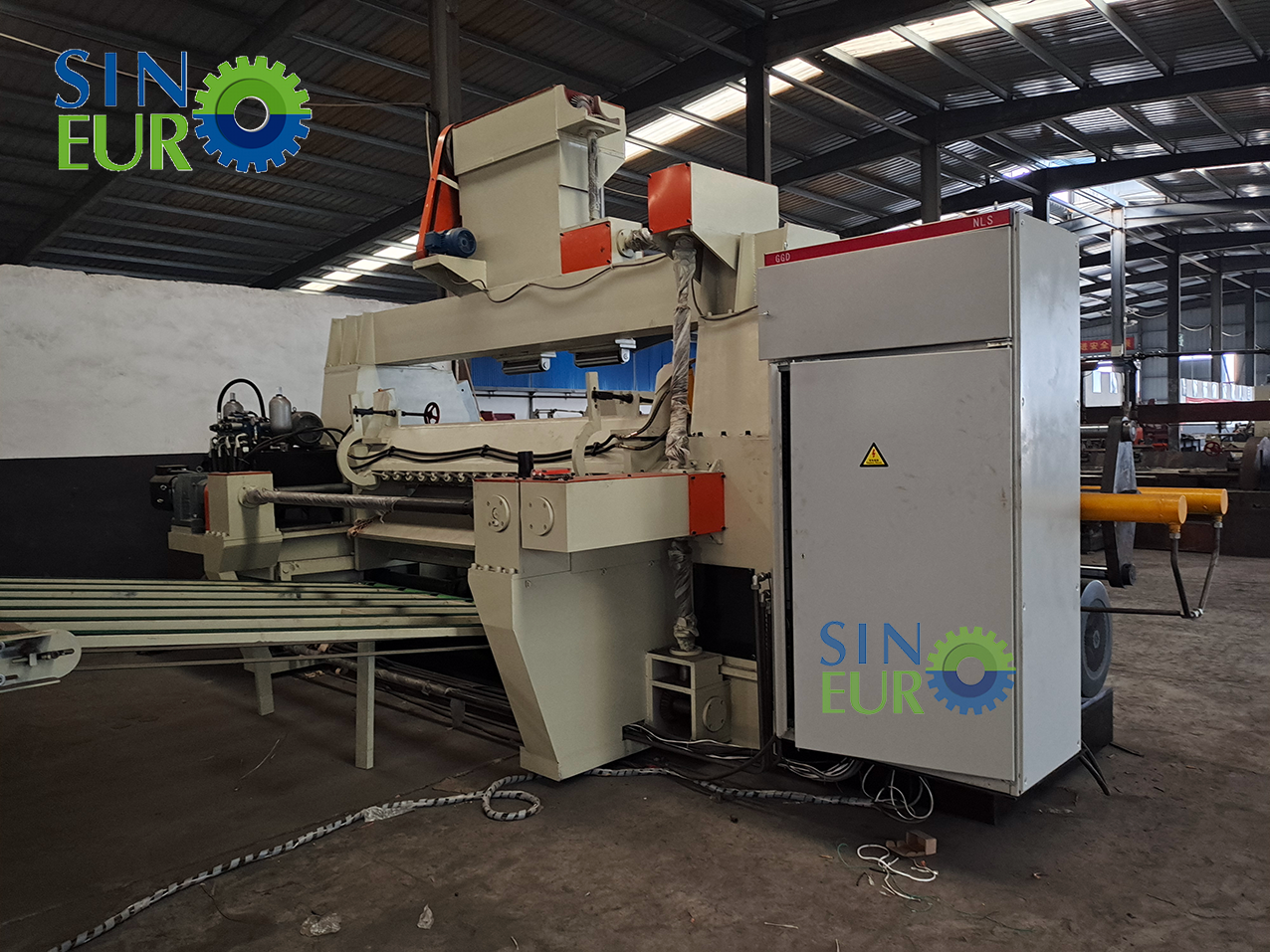

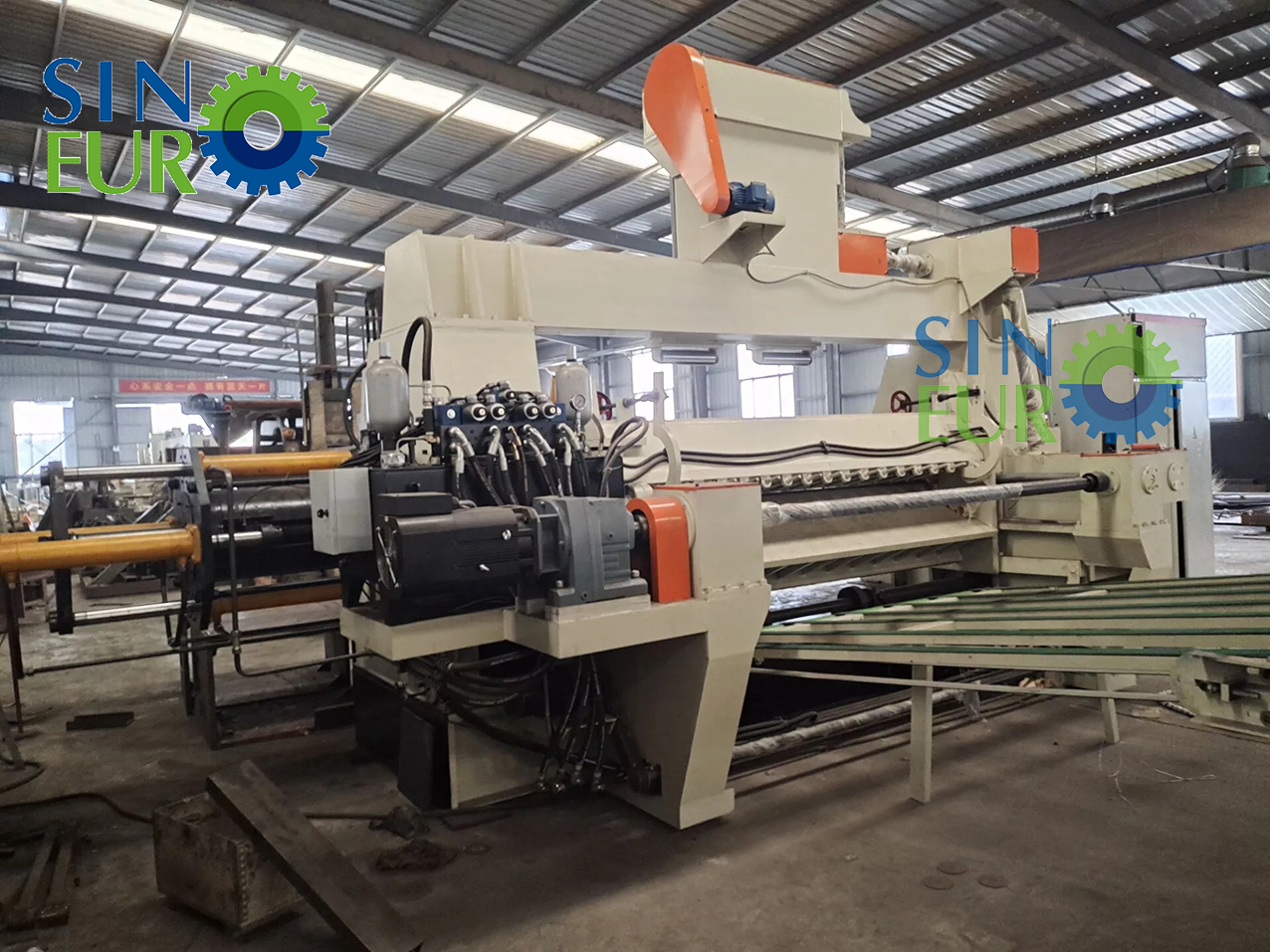

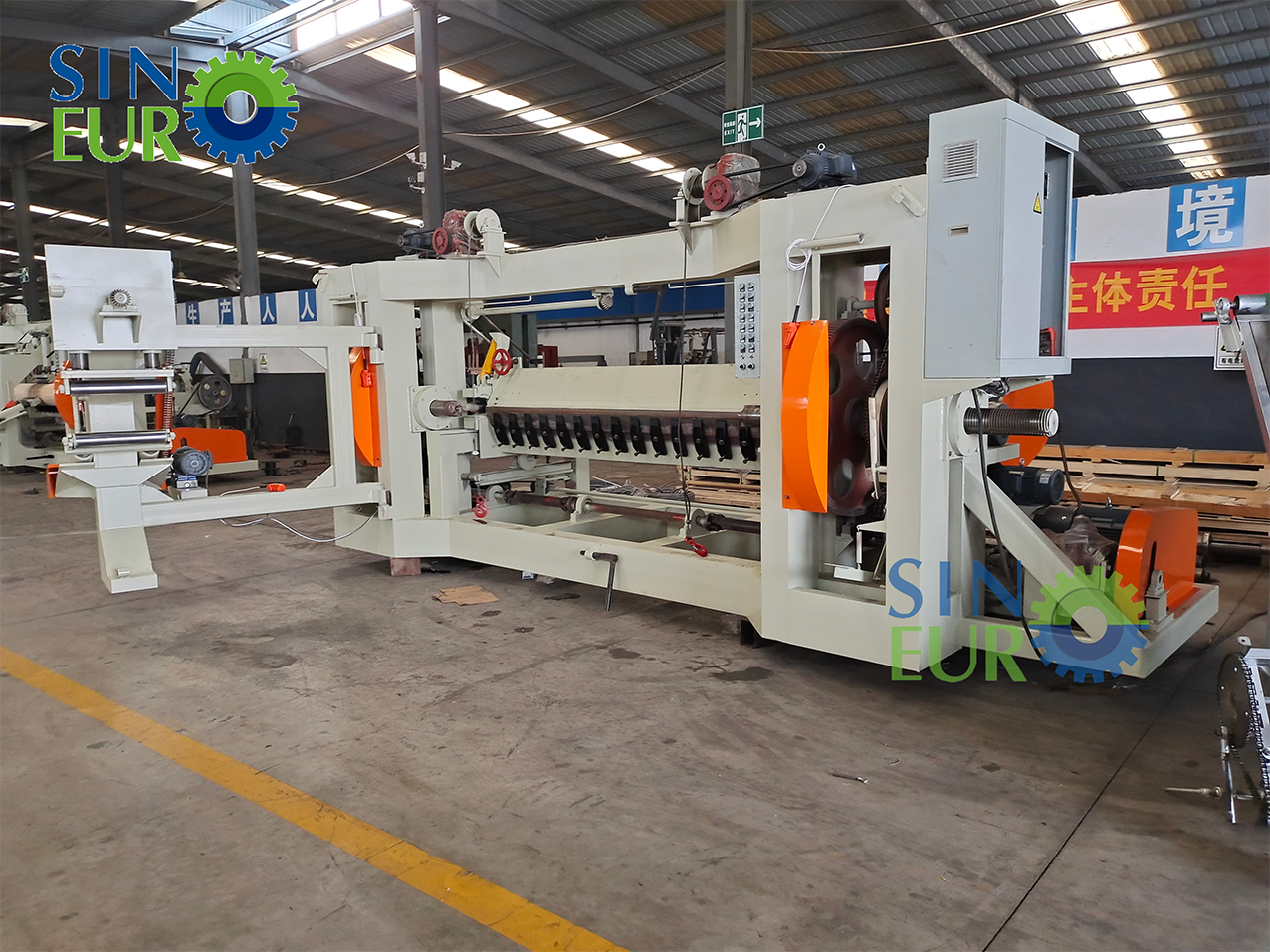

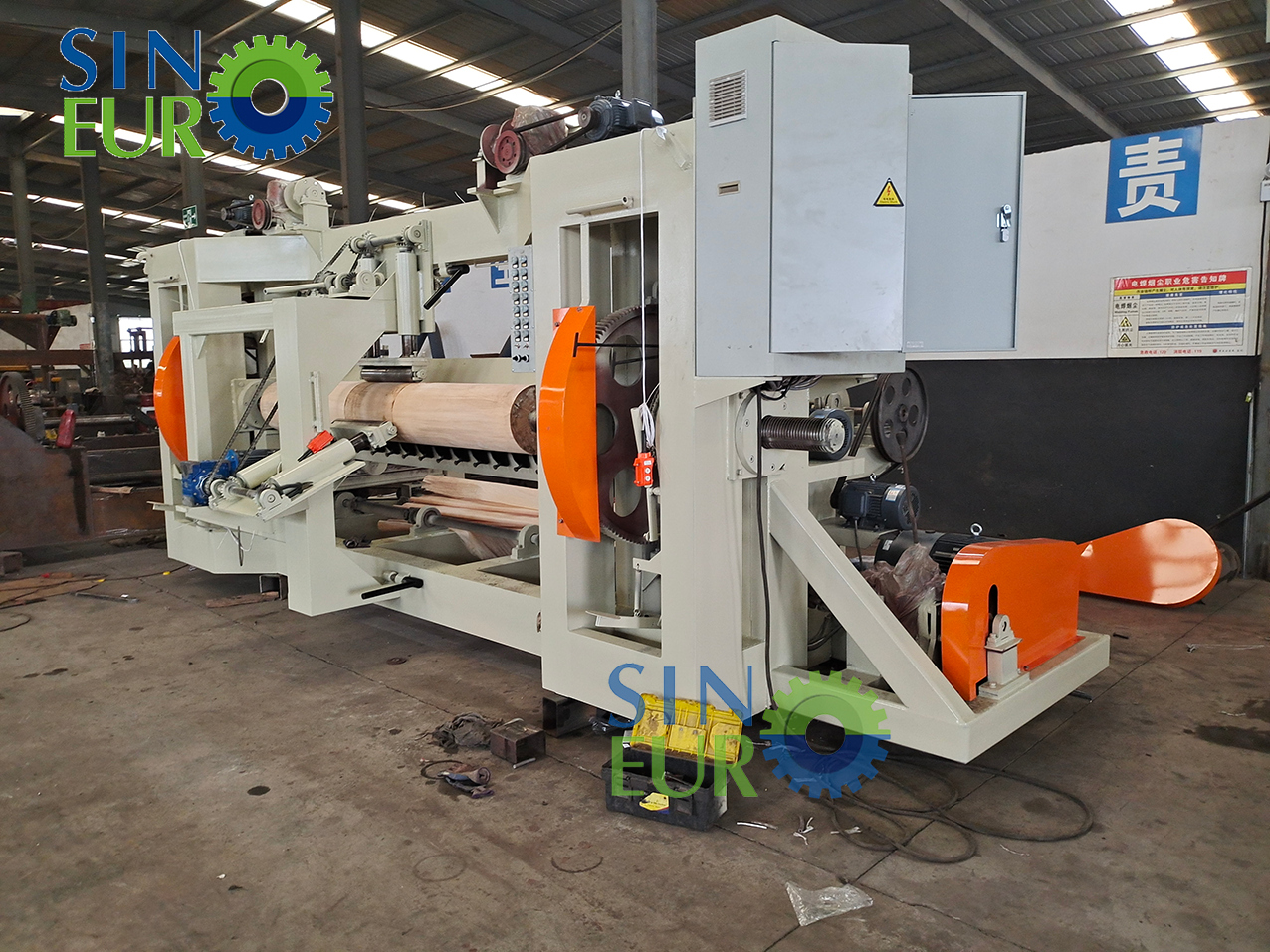

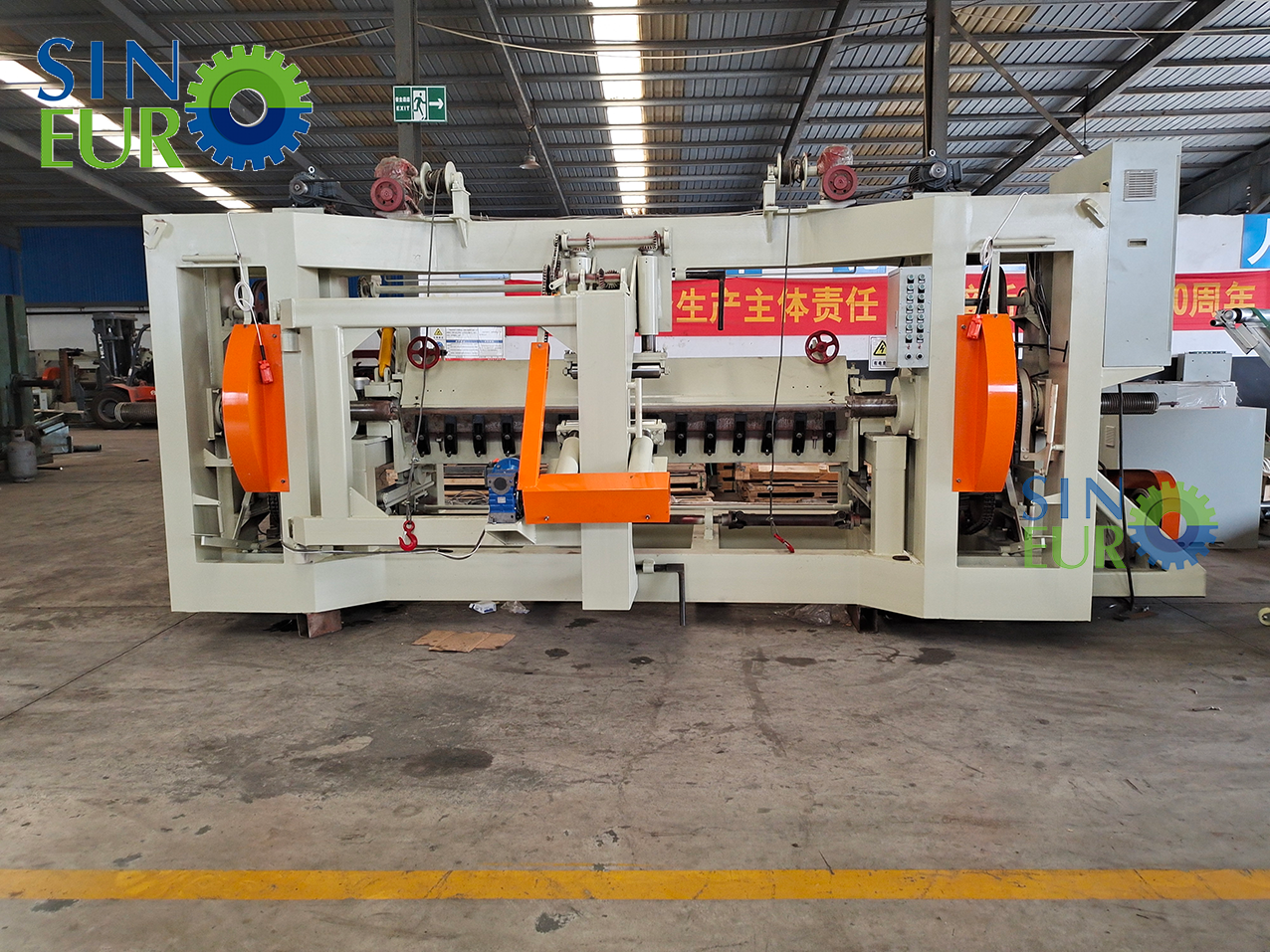

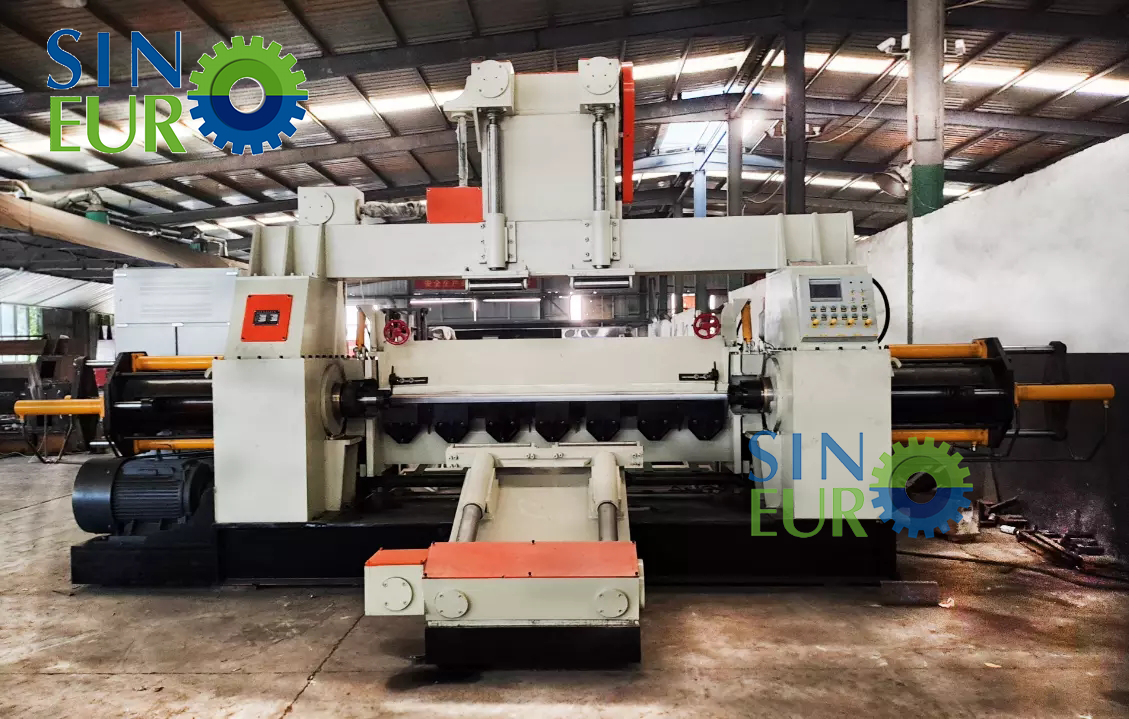

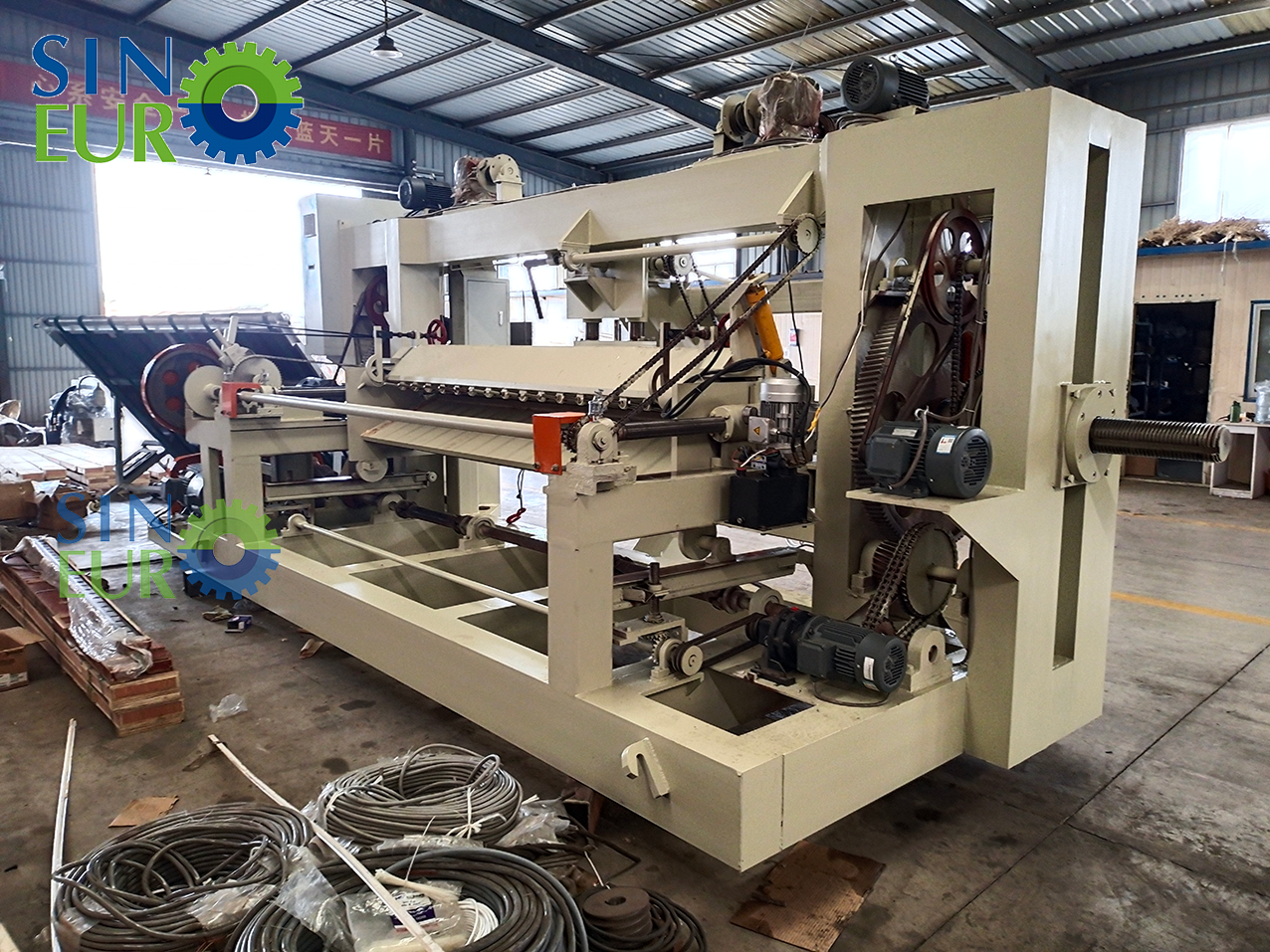

Machine live photo

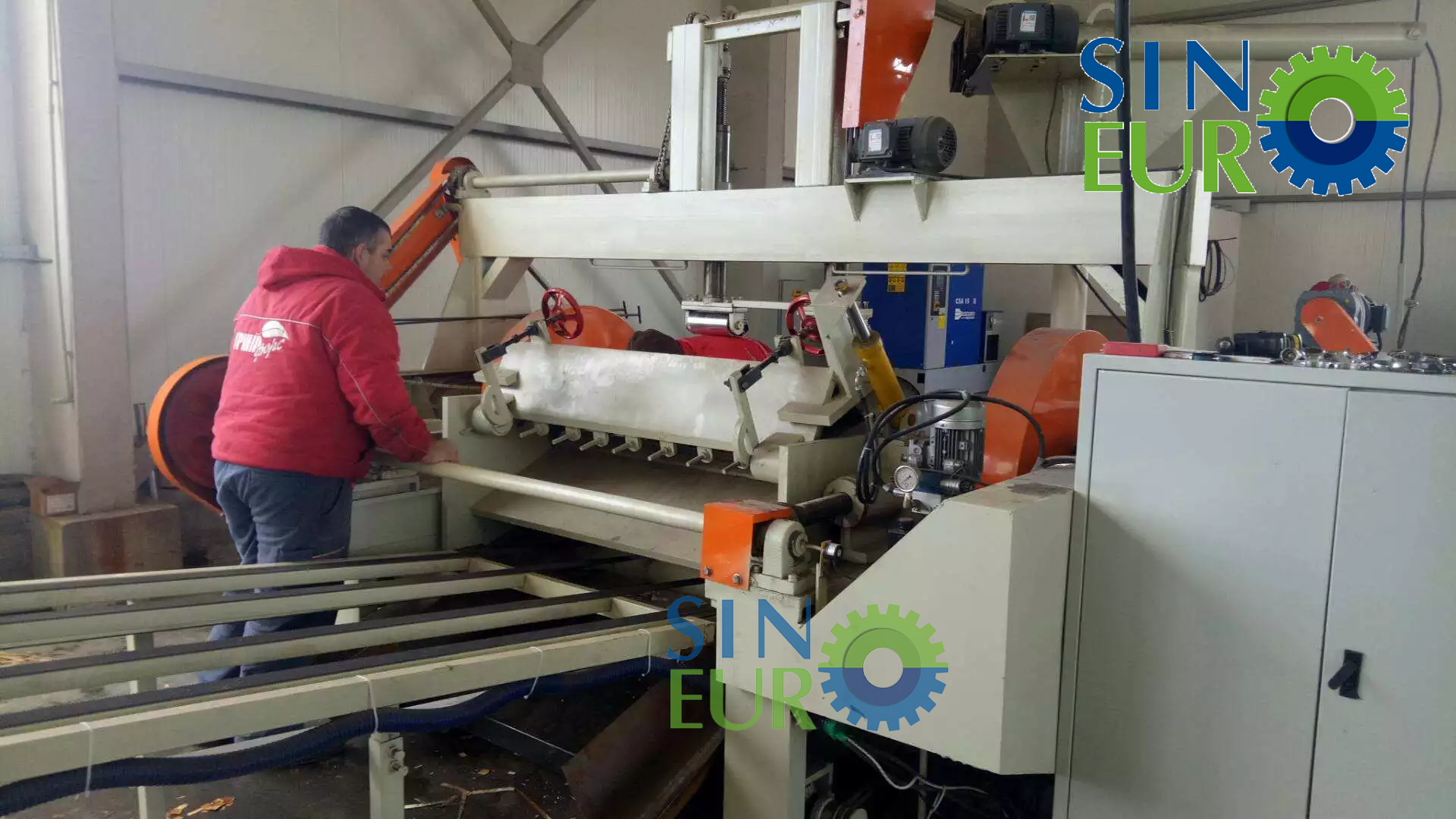

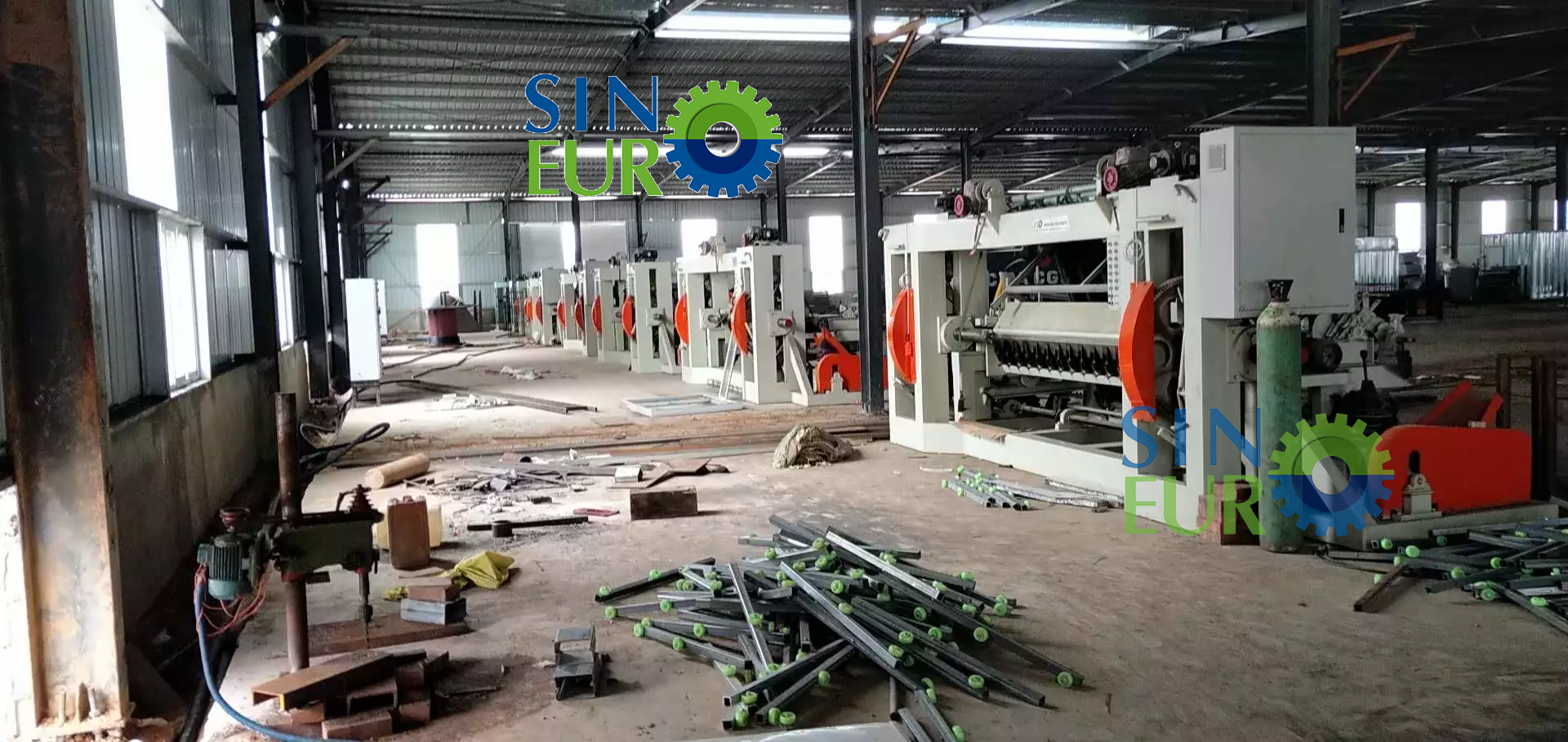

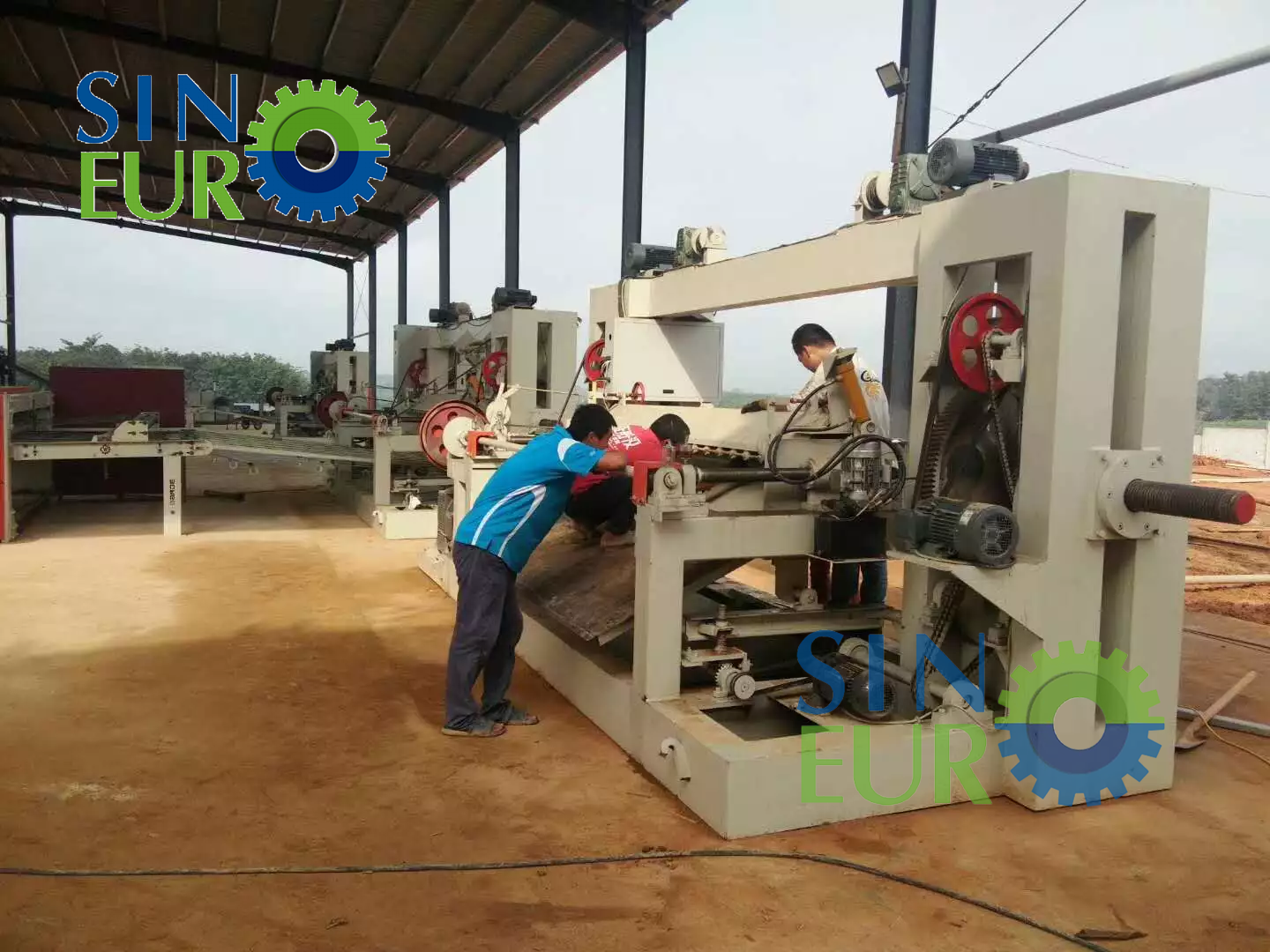

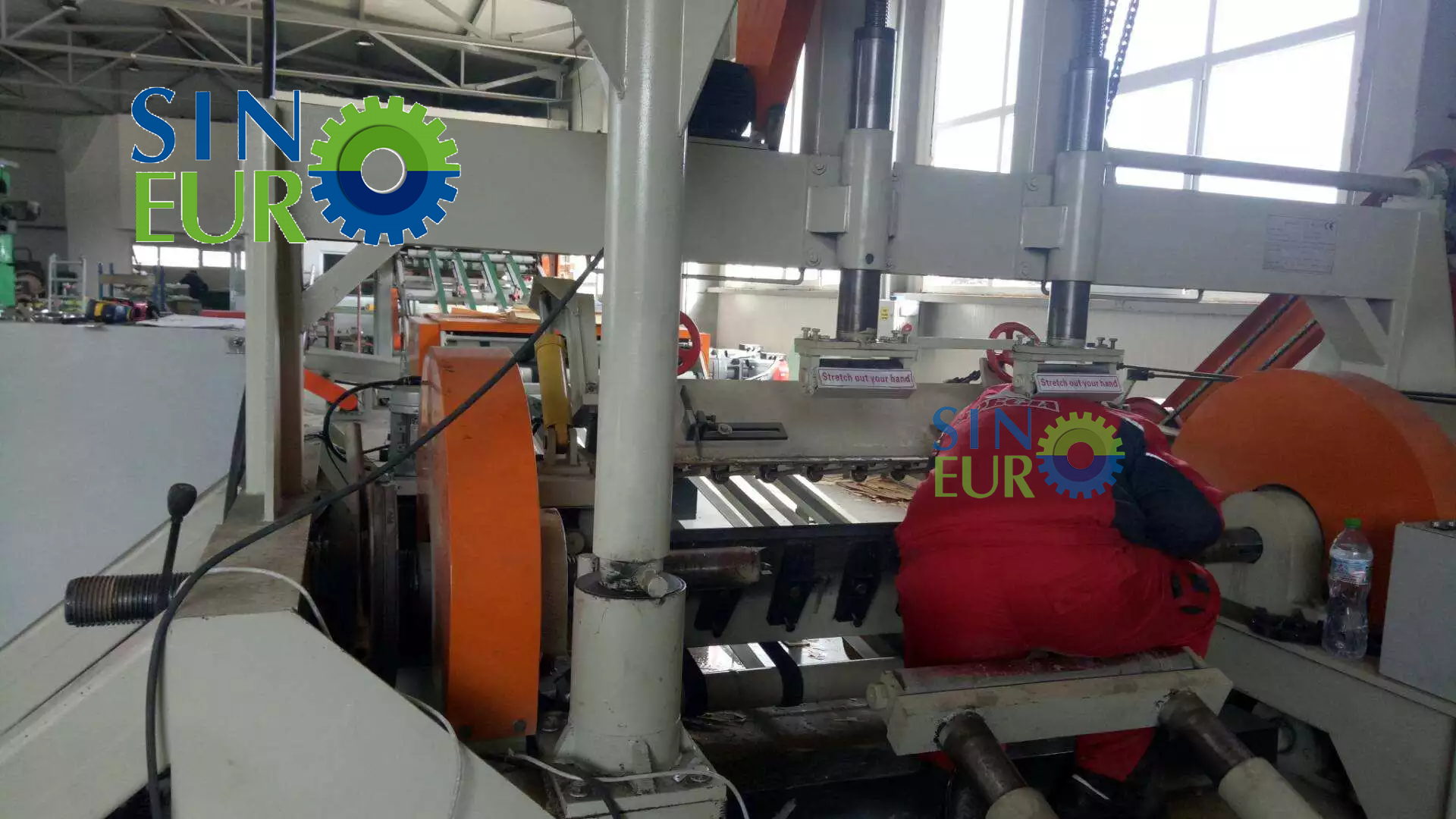

Machines in Users’ Factory
Details Images

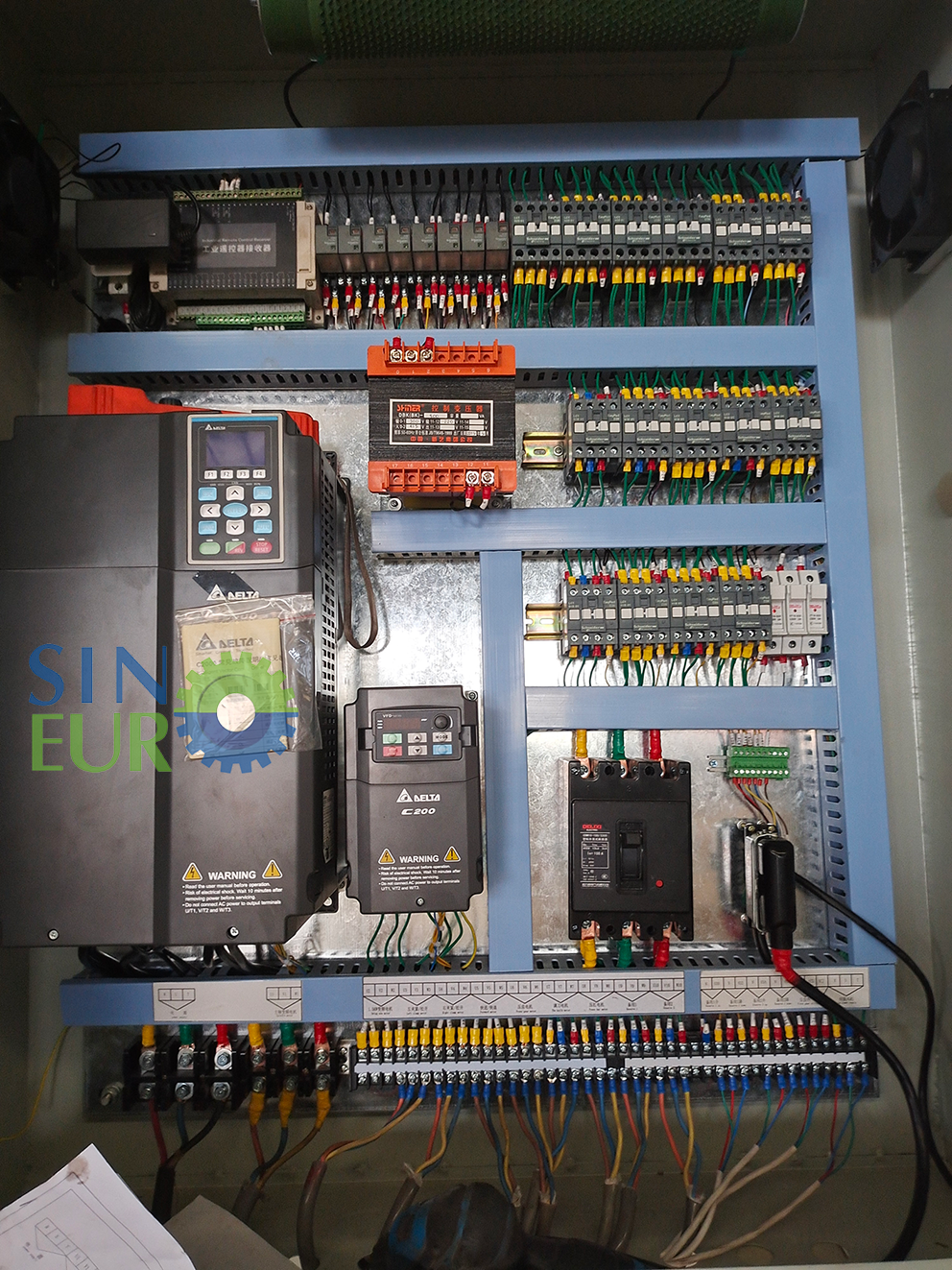

1. Taiwan Delta PLC and Inverter
Taiwan Delta PLC and Inverter, Schneider electric parts. CNC touch screen thickness adjustment. High configuration guarantee perfect peeling performance.

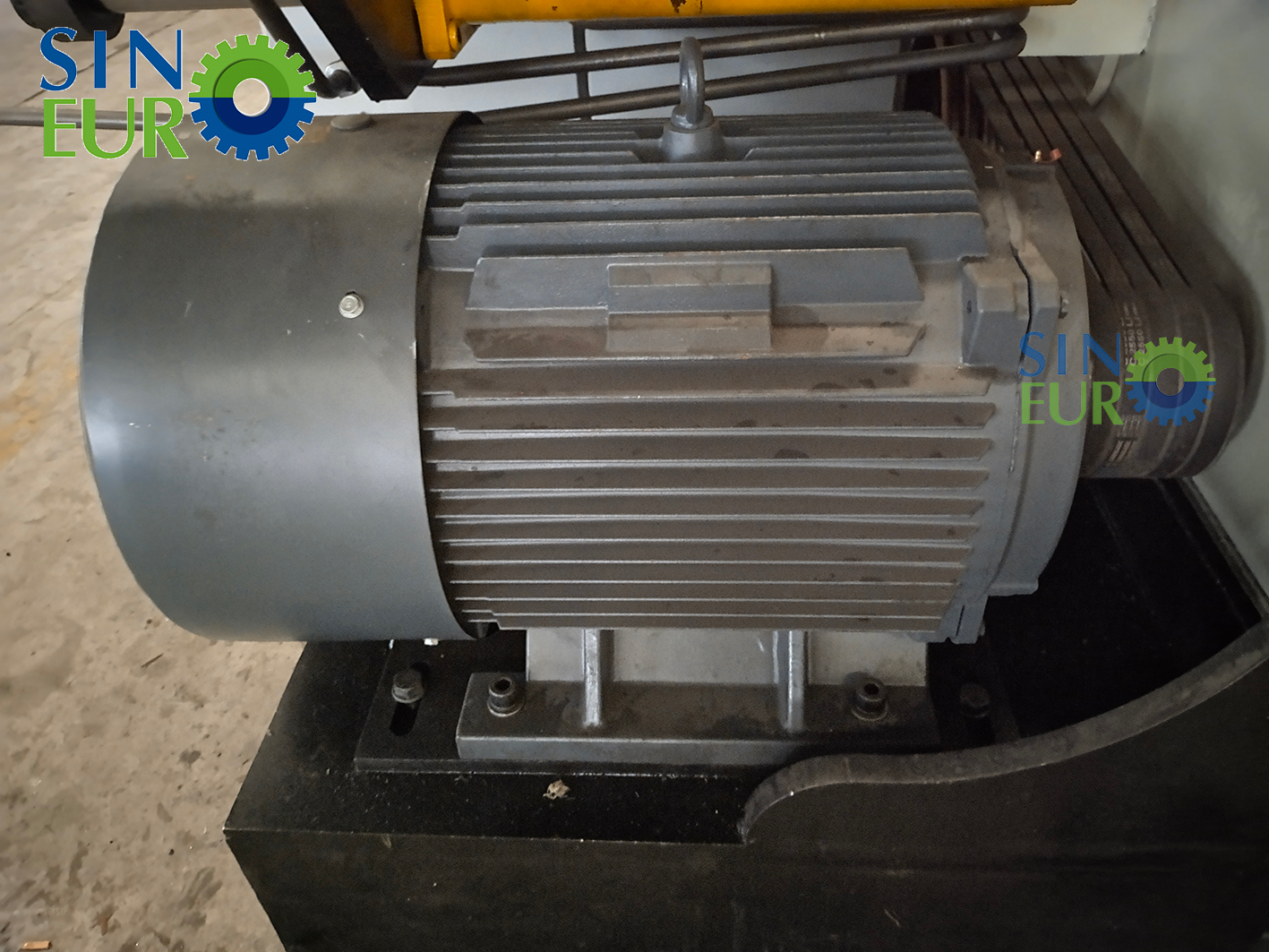

2. Siemens motor
All motors are Siemens motor. It is more durable and can work stably in any environment.

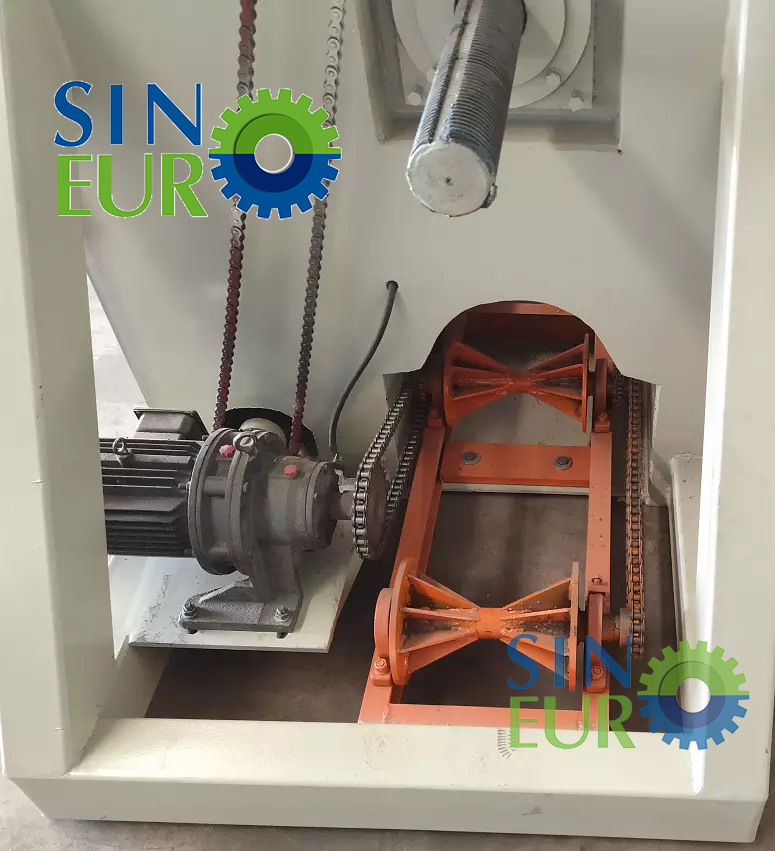

3.Automatic left core wave conveyor.
Automatic left core wave conveyor. Transfer the left core log to spindleless veneer peeling line directly. Labor saving and improve working efficiency.
4.automatic hydrulic double rotary chucks.
automatic hydrulic double rotary chucks. More easy log feeding than single chuck. And can connect with automatic log centering and feeding system.

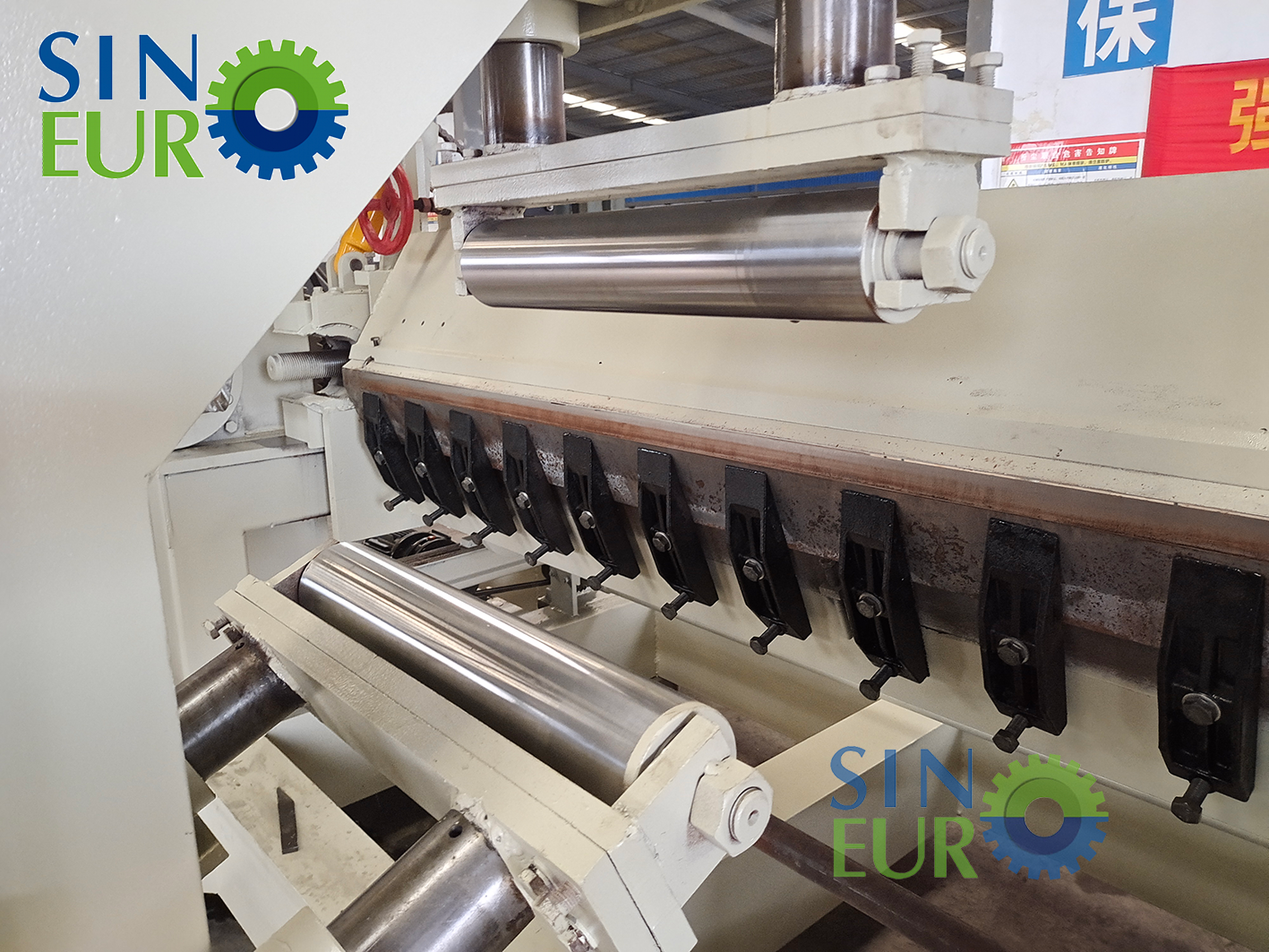

5.Up and down hydrulic pressure bar
Up & Down double pressure bar. When log peeling the log dia. is changing, the pressure bar will keep the knife gap is same to ensure the face veneer is evenness and smooth. The veneer is no thickness tolerance.

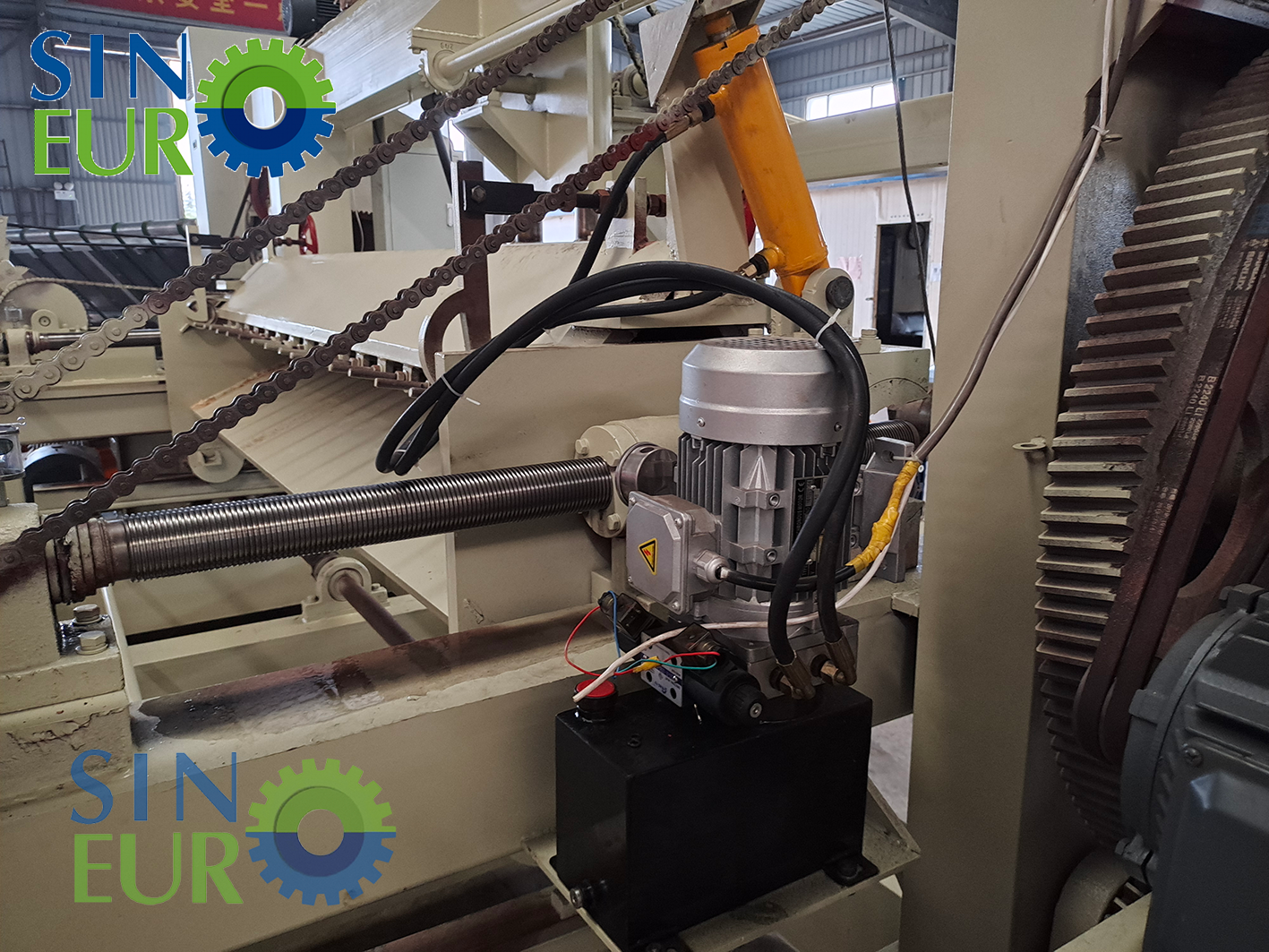

6. Knife lifting hydrulic nose bar
Knife lifting hydrulic nose bar. Knife shifting by hydrulic pressure system, not manual. It saves time and energy,more easy to change the knife.

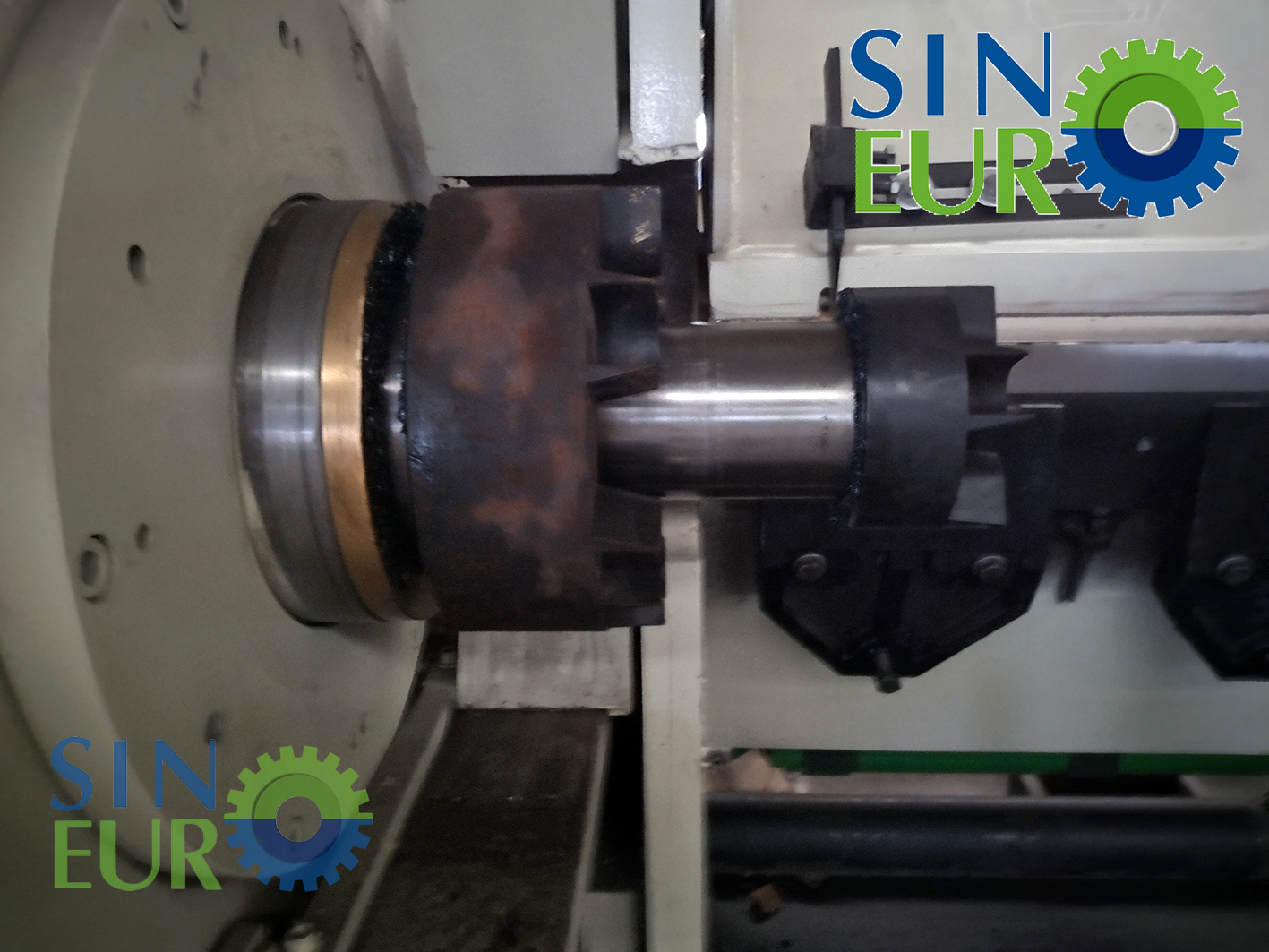

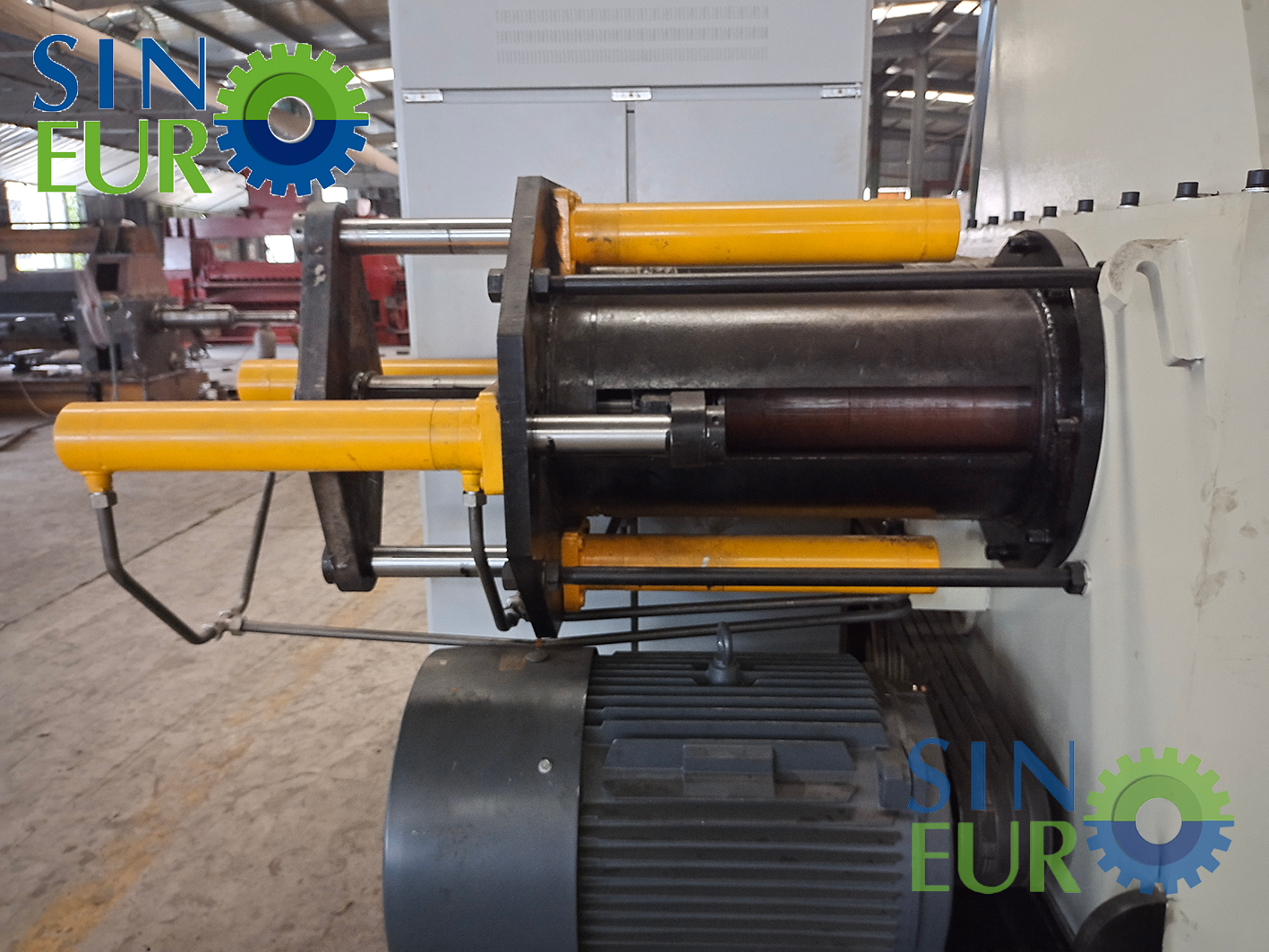

7. Hydrulic double rotary chuck

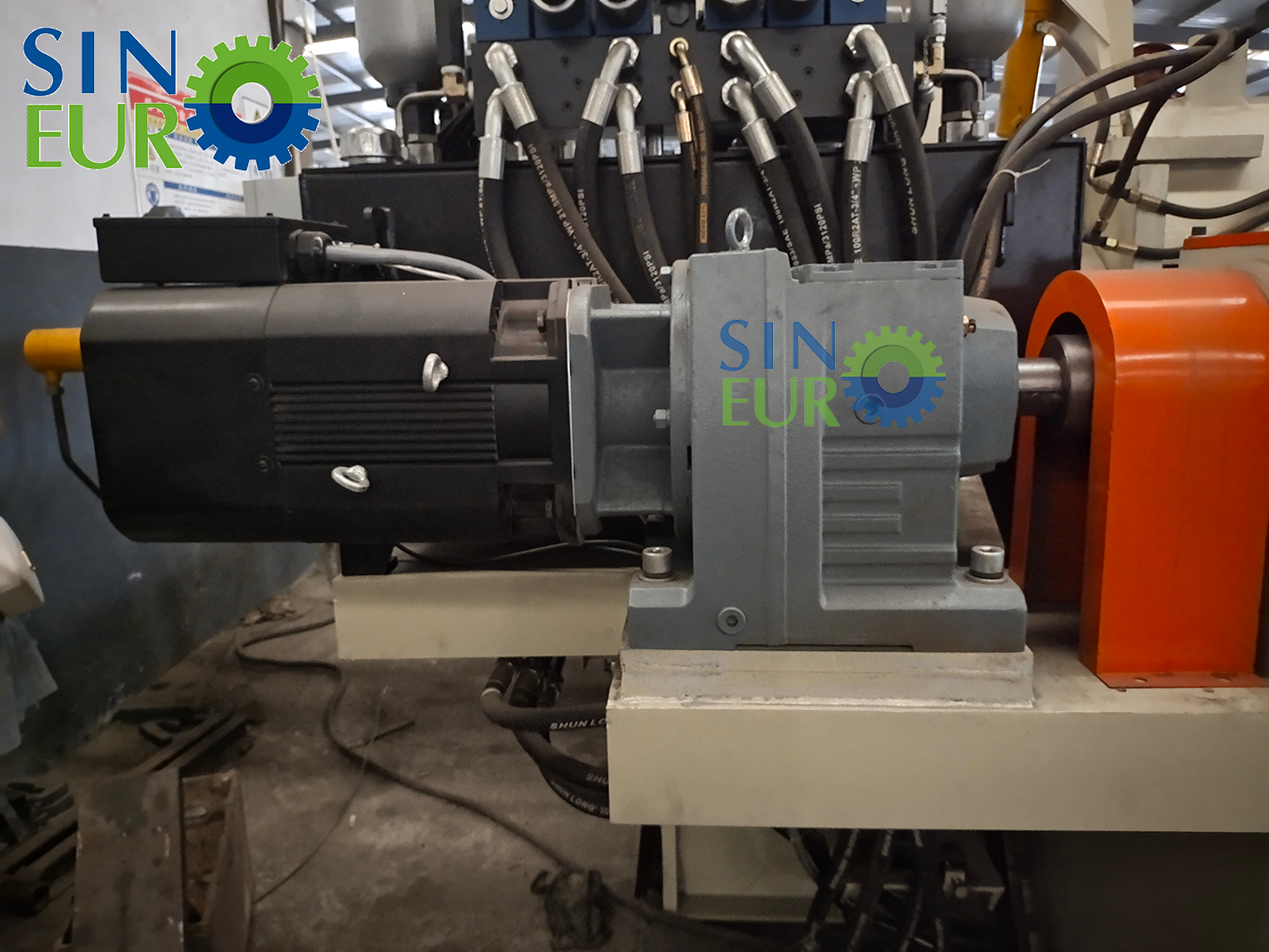

Servo motor with hardenned R97 gear box, big power and precise. Hydrulic double rotary chuck heavy duty model one it is suitable for thick core veneer peeling.
8. Automatic double rotary clamping logs
Double chucks to clamping the logs with automatic advance and retreat clips. Saving time for log feeding and shifting. Big dia. chuck, more durable, and more advanced,heavy duty.

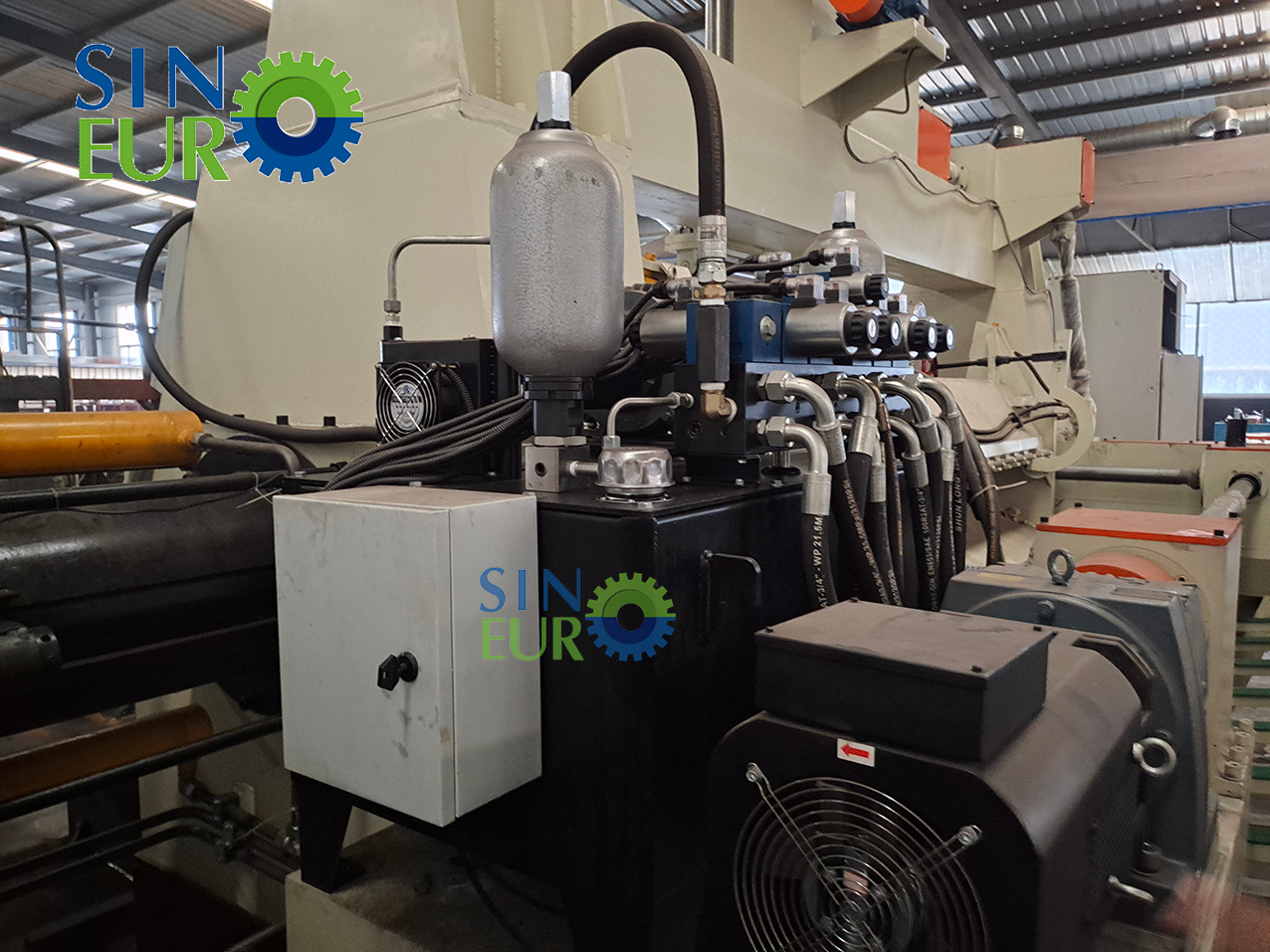

9.The most advanced hydrulic power pack
For thick core, we use the most advanced hydrulic power pack, silent power pack,no big noise, strong power. Long life shelf.
Matching machines

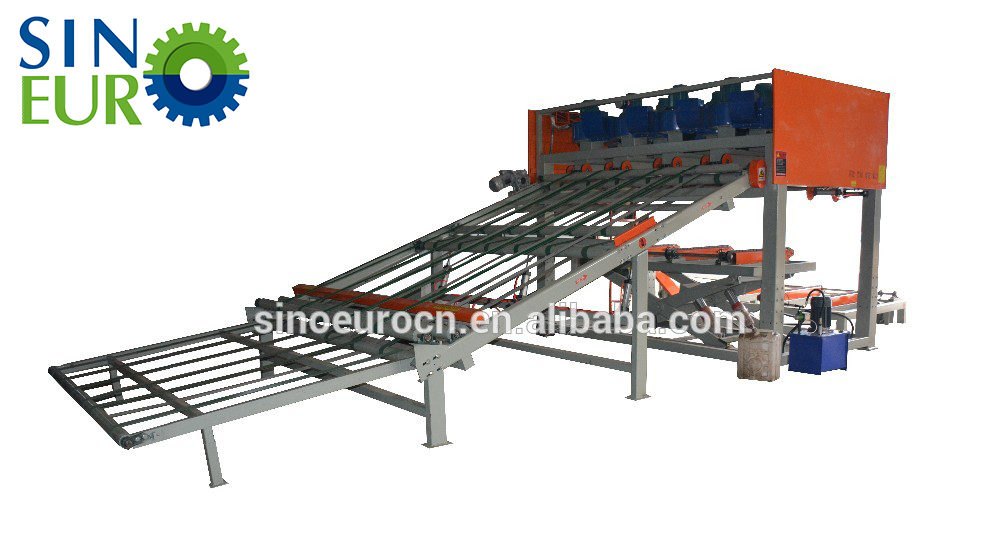

2. Vacuum Core Veneer Stacker
Stacking width : 1300-2600mm
Stacking length : 500-1320mm
veneer thickness : 0.8-10mm
Stacking speed : 90m/min
Vacuum absorb moto : 1.5KW*8PCS
Total weight : 3600kgs
Overall dimension : 8100*3200*2750mm

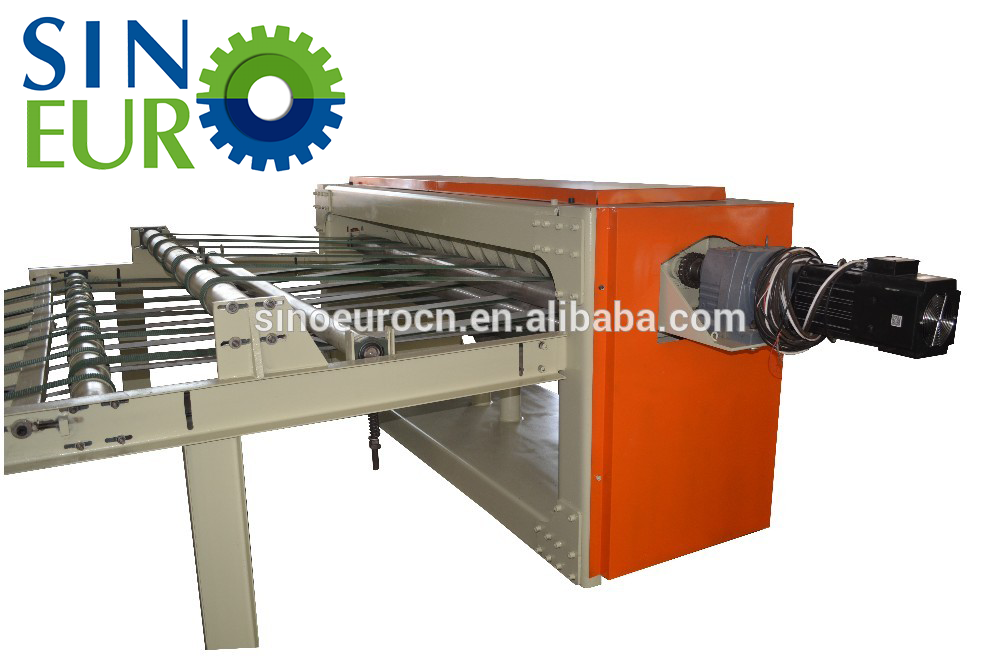

2. Rotary Clipper with Servo Motor
Max. working width : 2700mm
Clipping thickness : 0.8-10mm
The voltage : 380V/415V
Feeding speed : 0-50m/min
Motor power : 4kw*2 servo motor
Product dimension : 9000*4000*1500mm
Weight : 2500KGS
Company Profile

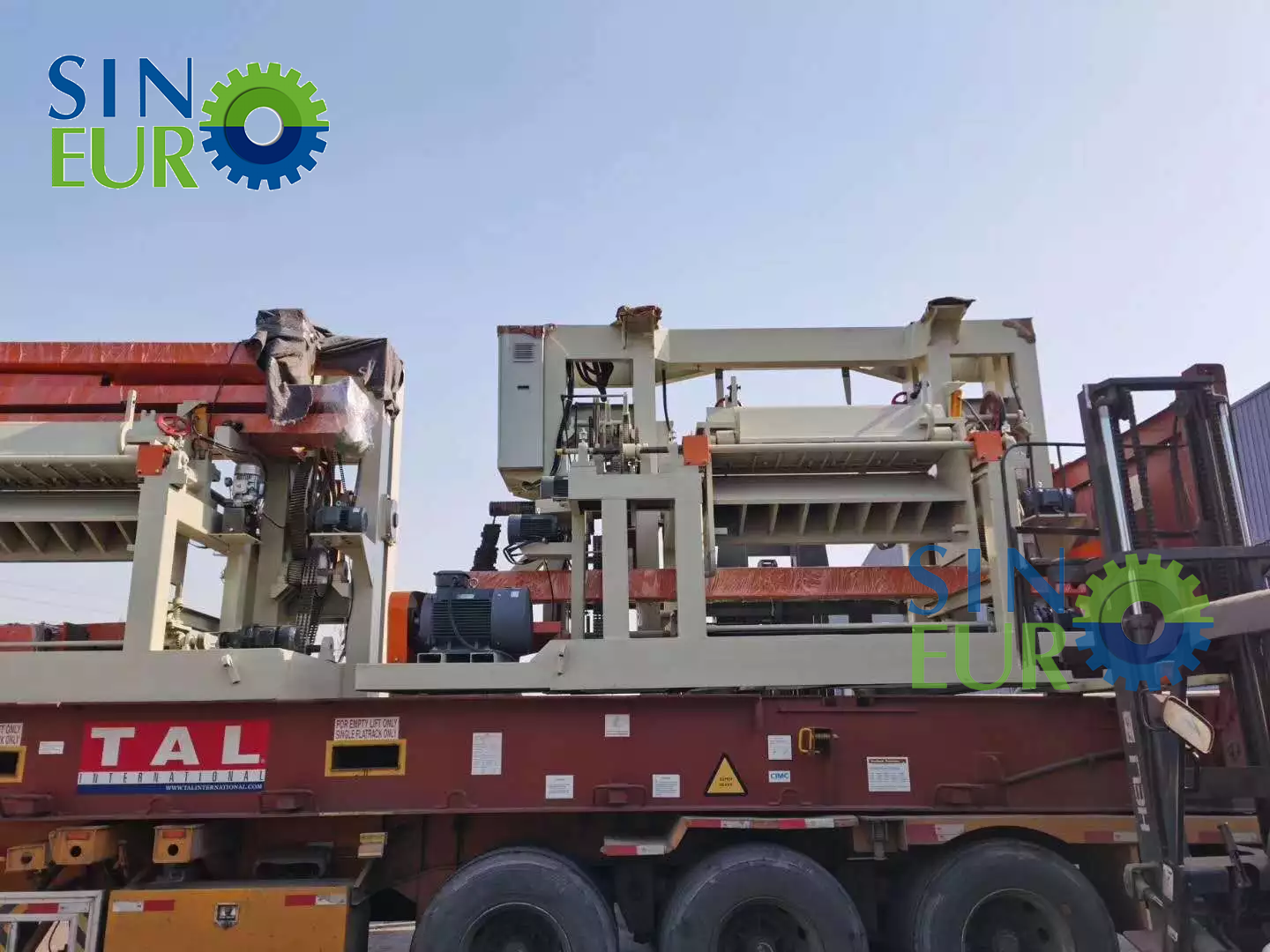

Packing & Delivery

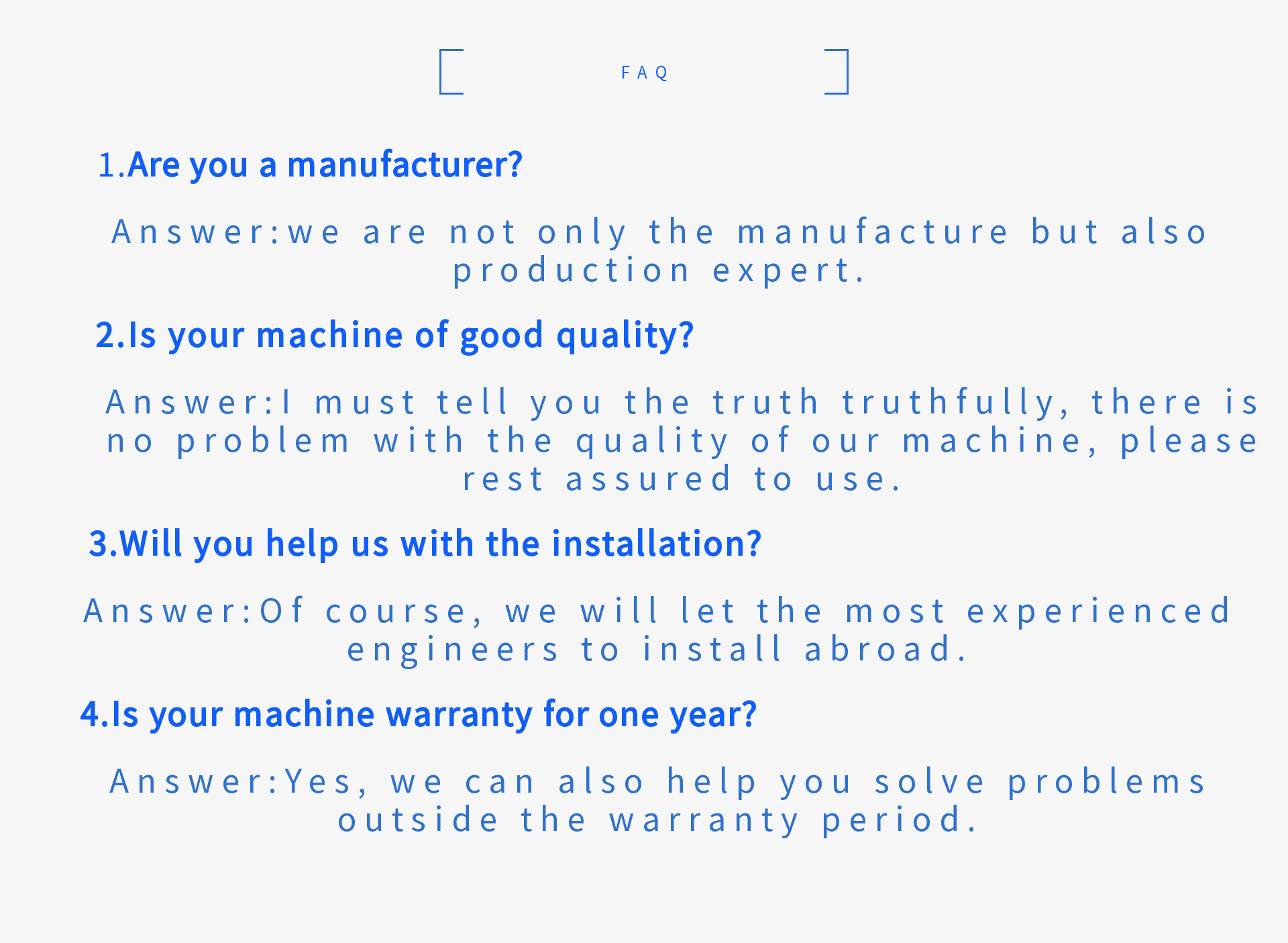

FAQ
