plywood edge trimming saw double edge saw edge banding saw

Product Description

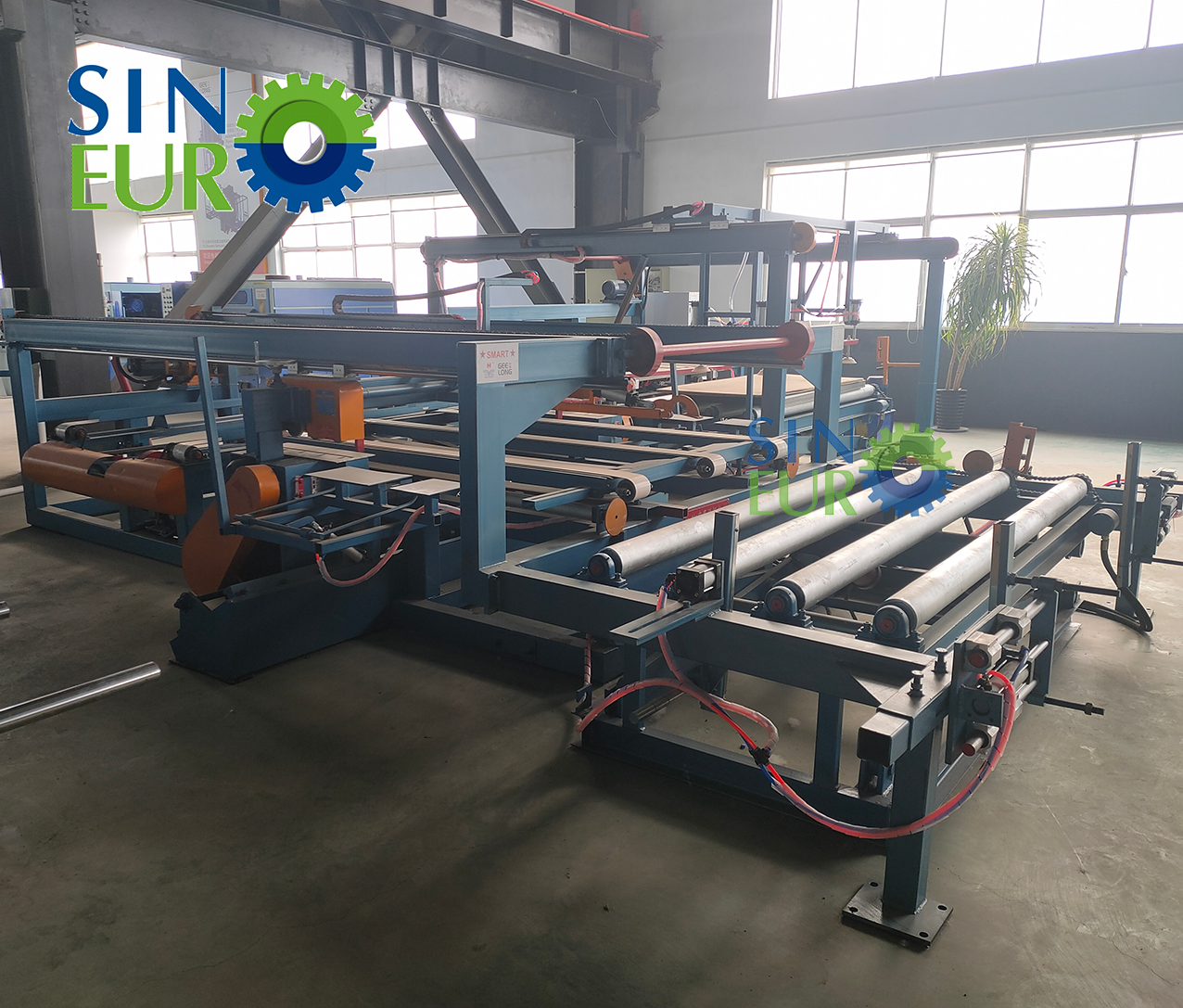

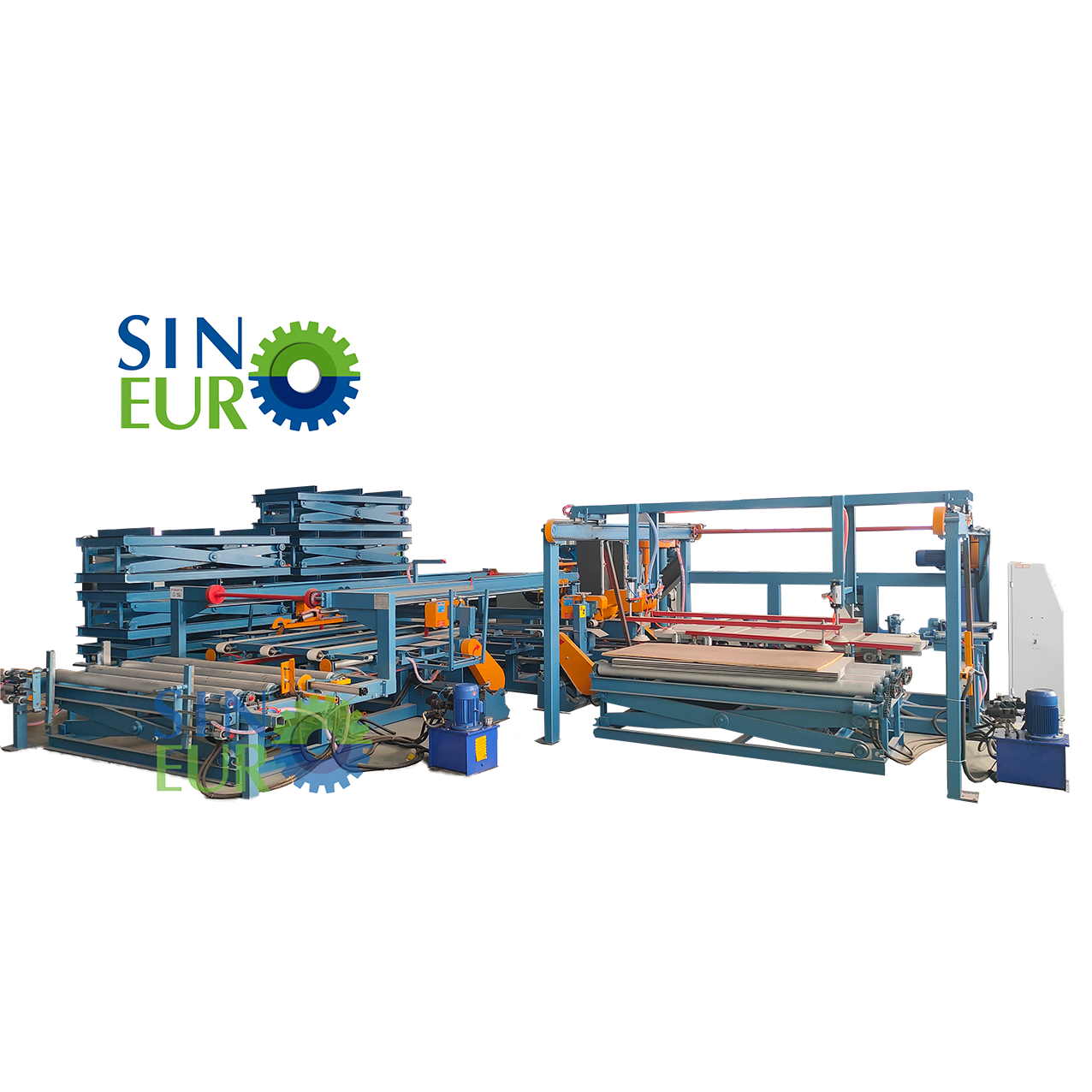

Automatic vertical and horizontal edge sawing machine is suitable for the production of wood-based panel edge cutting process. This product has the advantages of high speed, stable operation and low noise; The advantages of standard and unified size of finished products; Its automatic sawing has the characteristics of high cutting quality, smooth plate end face, no edging and high production efficiency. It is also one of the indispensable equipment for high-end wood-based panel production enterprises.
Long saw cutting size
2440mm(adjustable)(1830-2500mm)
Lateral saw cutting size
1220mm(adjustable)(915-1300mm)
Working speed
10-30m/min
Power
42kw
Saw blade dimension
Diameter 305mm,lnner diameter 25.4mm
Capacity
8-12pcs/min
The working style
infrared ray guidance
Feed Way
Full Automatic
Work Methods
Full Automatic
Weight
5000kgs
Overall dimension
8000*5000*1200(mm)

Main Features

1. The main structure is strong with enoughrigidity and high stability.
2. The high efficiency: one shift working(2 worker and 8 hours) can produce 4000-5000pcs(18mm).
3. This saw has high precision anti-wearing guide rail, infrared guidance.
4. High automatic: all working process is controlled by PLC, automatic cutting and stacking.
5. Automatic device to clear and collect the edge strips cut off from the panel.
6. This machine only needs 2 workers for feeding, and automatic feeding style onely need one worker.
7. Servo motor supply the smooth running, high speed,high precise, precise position.

Detailed Images

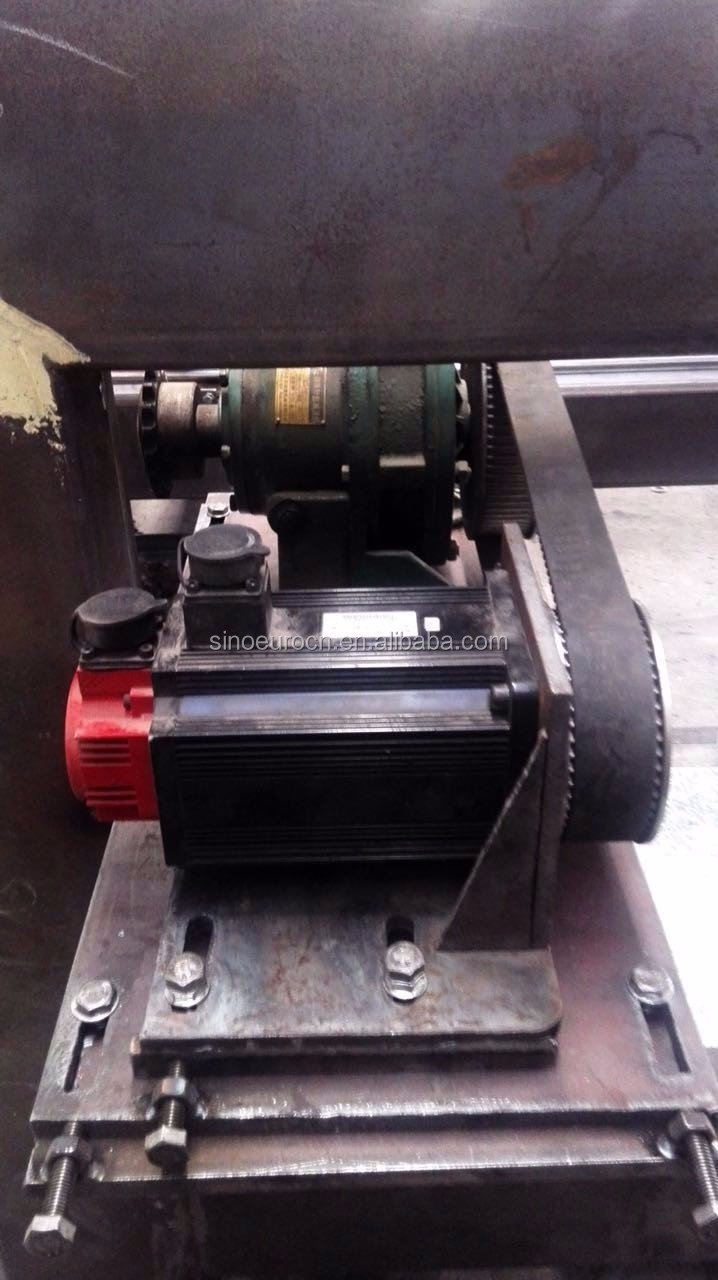

Driving Motor
Name: Servo motor
Original: China

Domestic famous motor, strong driving force, low power consumption. From the lowest to the highest speed, speed servo motor can run smoothly and
strong ability of overload.

Saw blade
Name: Saw blade
Original: Germany

The overal diameter is 305mm, the inner diamter is 24.5mm

Infrared Ray Device
Name: Infrare guidance device
Original: China

Infared ray device can give a clear size cutting
guidance, to make it high precision size cutting ,
also make the workers easy to judge the exactly
position for the board feeding .

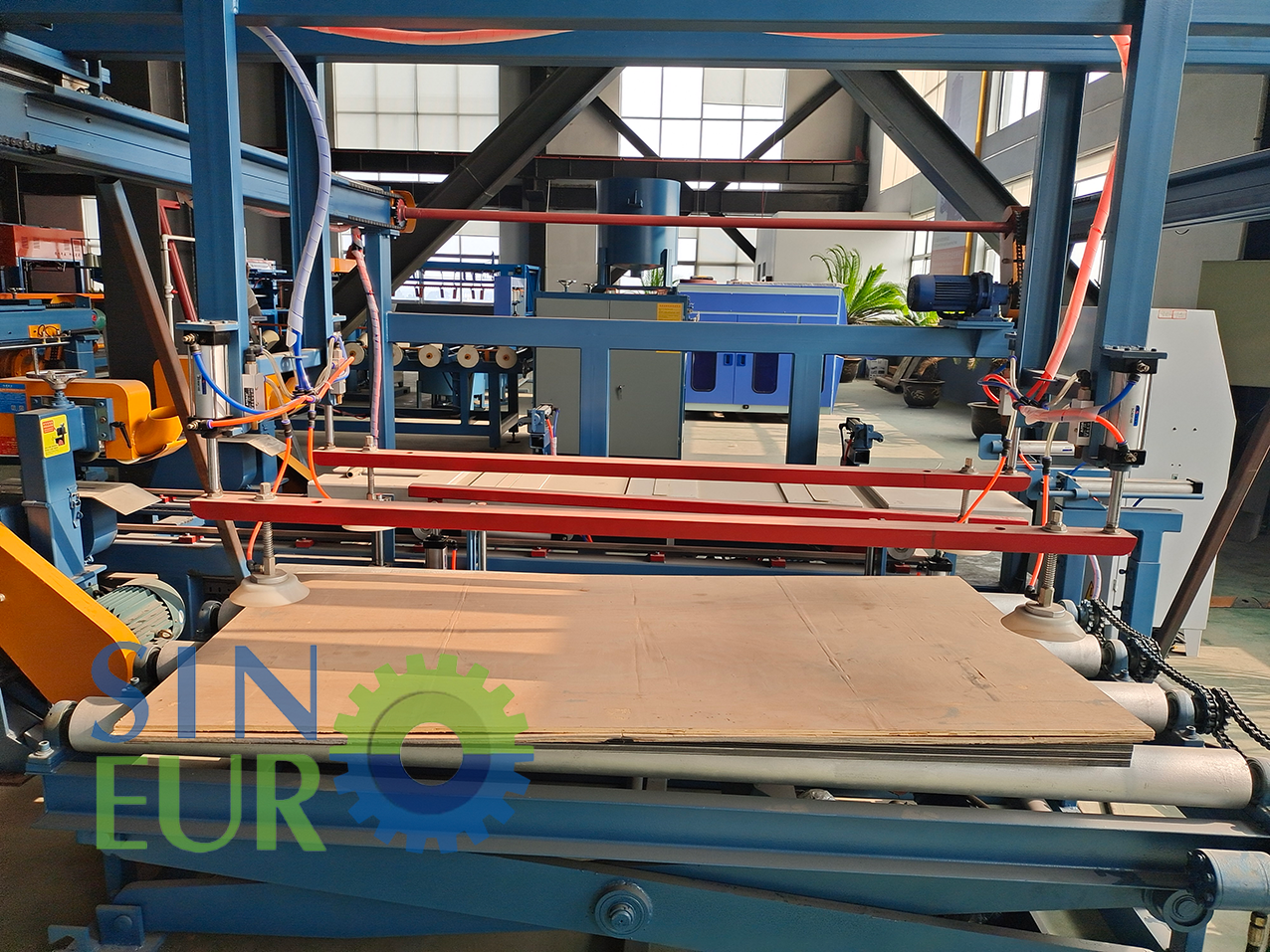

Stacking System
Name: Automatic stacking system device
Brand: Sinoeuro
Original: China

Full automatic stacking system to gurantee the whole trimming jobs process smooth and fast.
Saving labors and time. It can stack and tidy
the finished board in to bunddles.

Video

All working process is controlled by PLC,so in plywood production,final size cutting will be completely automatic Edge cutting and Stacker.
