Product Description



Specification
Model
|
4*4FT Core Veneer Vacuum Stacker
|
4*8FT Core Veneer Vacuum Stacker
|
|||
Veneer width
|
400-1300mm
|
4*3ft, 4*4ft, 4*8ft (size adjustable)
|
|||
veneer thickness
|
1.2-3.6mm
|
1-4mm
|
|||
Stacking speed
|
30-100m/min (speed adjustable)
|
30-100m/min (speed adjustable)
|
|||
Stacking height
|
1000mm
|
1000mm
|
|||
Vacuum absorb motor
|
1.5KW*4PCS
|
1.5KW*8PCS
|
|||
Lift motor power
|
2.2 kw
|
2.2 kw
|
|||
Total Power
|
23.2KW
|
29.2KW
|
|||
Total weight
|
2400kgs
|
4000kgs
|
|||
Overall dimension
|
8000*2040*2750mm
|
10600*2040*2750mm
|

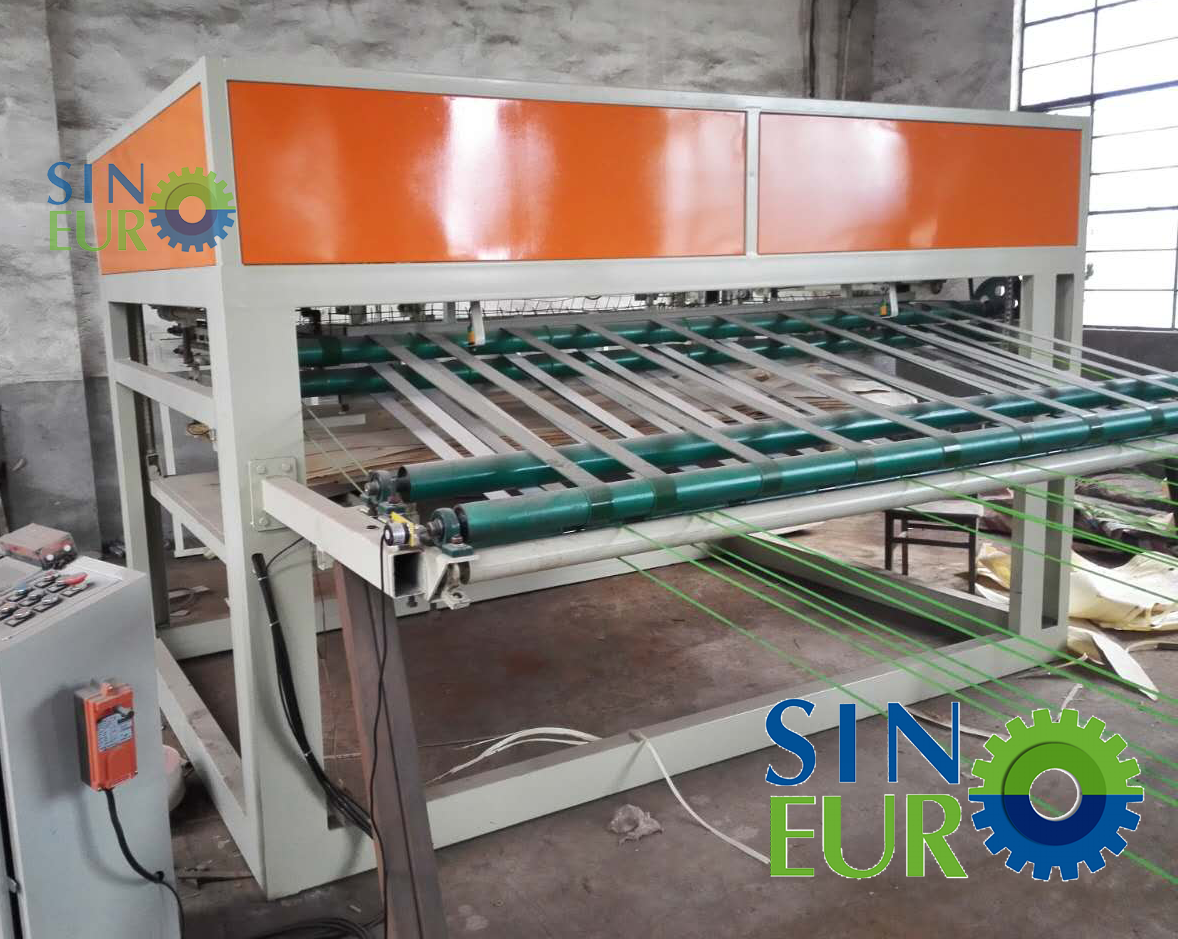

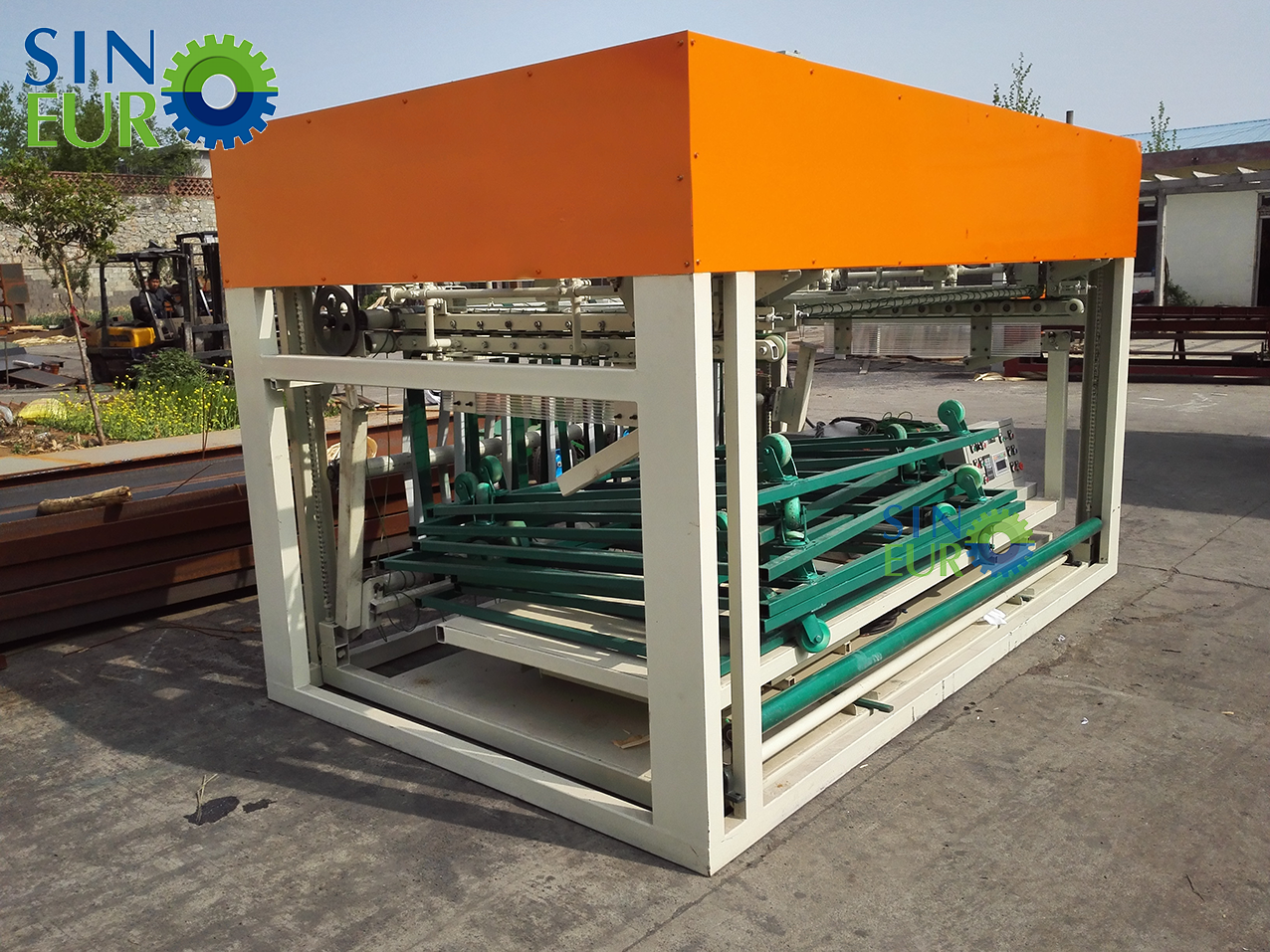

Machine live photo






Details Images

Vacuum absorb stacking veneer
Exclusive patent desgin,Strong Adsorbing for all thickness veneer
Sorting & Grading veneer
Veneer stacking by 2 grade or 3 grade, quality veneer and defects veneer


Waste veneer belt conveyor
Waste veneer belt conveyor waste veneer automatic drop and conveyor out
Automatic outward control system
Complete automation of manufacturing process,High efficiency and stable quality,It can quickly adjust the product structure and expand production capacity, and greatly reduce the labor intensity of industrial workers.


Lead control system
Lead control system, the most stable and precise system , use Schneider brand electrical parts. operation easily and long using life .
Machines in Users’ Factory
