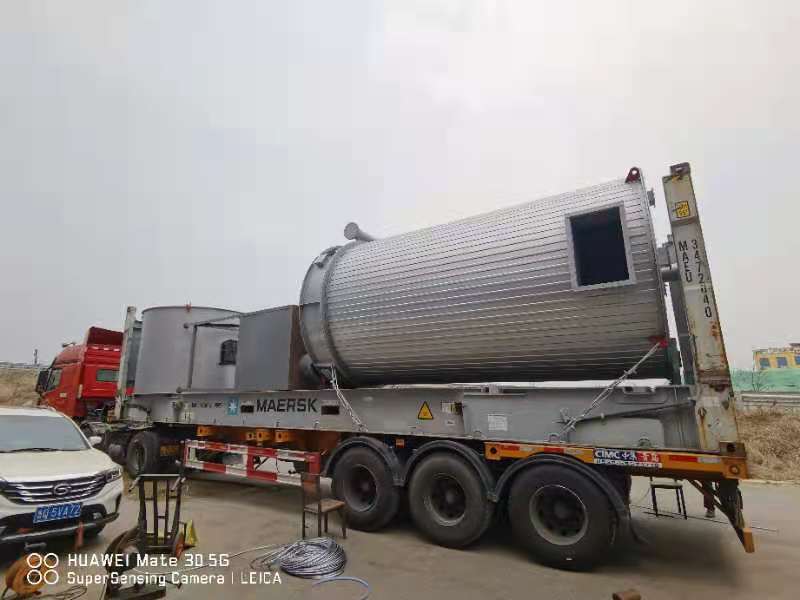

Picture Example:
- Lead time:
-
Quantity(units) 1 – 1 2 – 3 4 – 5 >5 Lead time (days) 15 20 30 To be negotiated
Products Description
The new DZH horizontal boiler is a horizontal
multi return water fire tube hybrid boiler. The boiler body is a single drum longitudinal water fire tube shell boiler.
This series of boilers adopt new scientific research achievements, such as arched tubesheet, threaded smoke pipe, etc., which solve the problems of tubesheet crack of shell boiler, bulging at the lower part of drum, tube explosion of water-cooled wall, low thermal efficiency, insufficient output, poor adaptability of coal quality and so on.
multi return water fire tube hybrid boiler. The boiler body is a single drum longitudinal water fire tube shell boiler.
This series of boilers adopt new scientific research achievements, such as arched tubesheet, threaded smoke pipe, etc., which solve the problems of tubesheet crack of shell boiler, bulging at the lower part of drum, tube explosion of water-cooled wall, low thermal efficiency, insufficient output, poor adaptability of coal quality and so on.
Applicable Industries:Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:…
Condition:New, New
Type:Natural Circulation
Usage:Industrial
Structure:Fire Tube
Pressure:Low Pressure
Steam Production:Max. 20t/h
Style:Horizontal
Fuel:Oil,Gas,Diesel,Lpg,Lng,Cng,Etc
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:…
Condition:New, New
Type:Natural Circulation
Usage:Industrial
Structure:Fire Tube
Pressure:Low Pressure
Steam Production:Max. 20t/h
Style:Horizontal
Fuel:Oil,Gas,Diesel,Lpg,Lng,Cng,Etc
Place of Origin:Shandong, China
Output:Steam
Dimension(L*W*H):Depends
Output:Steam
Dimension(L*W*H):Depends
Weight:5~50ton
Certification:ISO,CE,BV,ASME
Warranty:2 years, 1 Years
After-sales Service Provided:Engineers available to service machinery overseas
Key Selling Points:Automatic,high efficiency
Item:Fire Tube Industrial Oil Gas Fired Steam Boiler Price
Thermal efficiency:96%
Color:Customer’s Requirement
Rated steam capacity:0.5-20t/h
Rated steam pressure:0.7/1.0/1.25/1.6 Mpa
Rated steam temperature:170/184/194/204C
Feed water temperature:20C
Application:textile mill, food industry, garment etc
PRODUCT SPECIFICATIONS
|
Model
|
DZL1-0.7-T
|
DZL2-0.072-SCI
|
DZL6-1.5-T
|
|
Rated Capacity(t/h)
|
1
|
2
|
6
|
|
Rated Working Pressure(Mpa)
|
0.7
|
1.25
|
1.6
|
|
Normal Steam Temperature(℃)
|
170
|
90
|
1.25
|
|
Heating Area（㎡）
|
45.6
|
82
|
217.9
|
|
Grate Area（㎡）
|
1.8
|
3.36
|
7.54
|
|
Exhaust Gas Temperature（℃）
|
136
|
122.42
|
114.52
|
|
Design Thermal Efficiency（%）
|
78.6
|
82.66
|
81.42
|
|
Overall Dimensions（m）
|
4.7*2.0*3.0
|
5.1*3.0*3.2
|
7.6*3.0*3.6
|
|

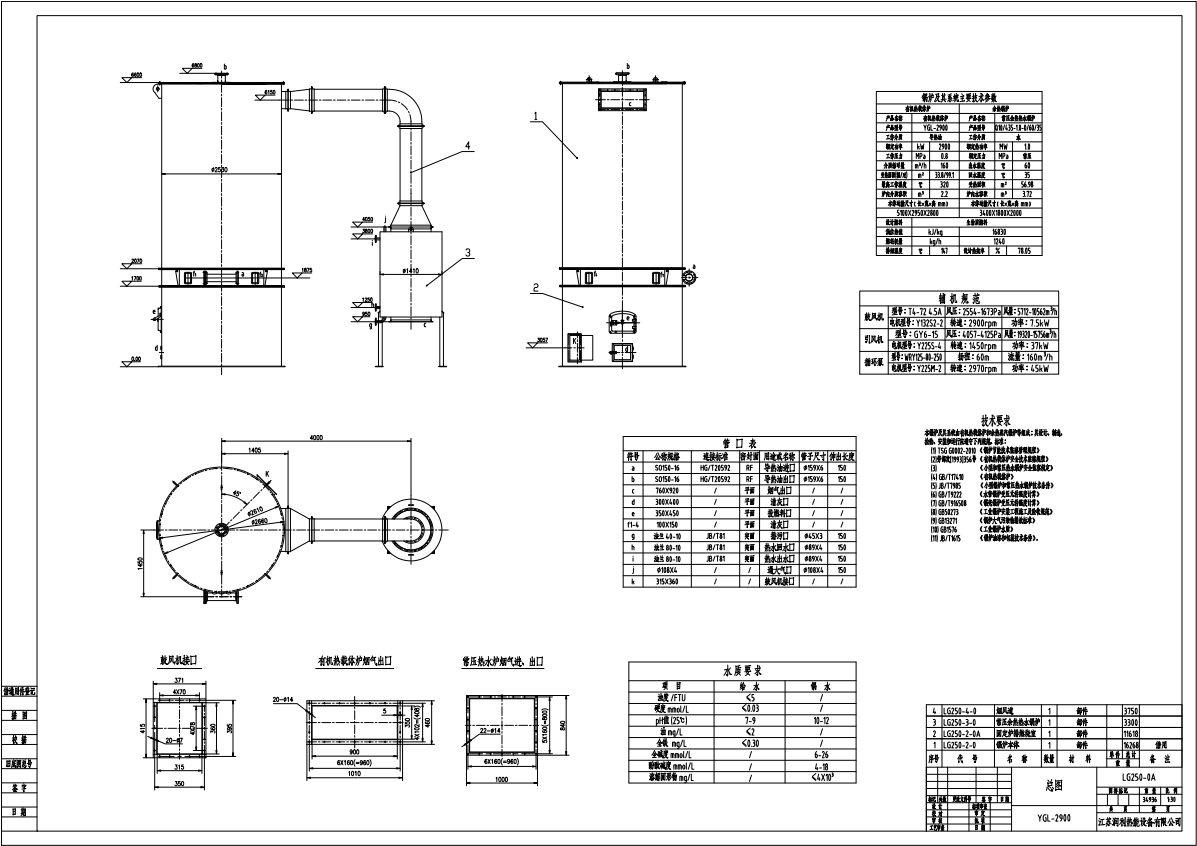

Model
|
LG120-0
|
LG250-0A
|
LG300-0
|
|
Rated Thermal Power(kw)
|
1400
|
2900
|
3500
|
|
Design Thermal Efficiency(%)
|
79.52
|
78.05
|
68
|
|
Working PressureMpa)
|
1.0
|
0.8
|
0.8
|
|
Max.Working Temperature（℃）
|
290
|
320
|
320
|
|
Boiler Internal Oil Capacity（m³）
|
0.073
|
0.25
|
0.36
|
|
Exhaust Gas Temperature（℃）
|
192.69
|
147
|
≤Outlet medium temperature+100
|
|
Applicable Fuel
|
Wood, Biomass particles
|
||
Product Advantages
High-Efficiency
The high-efficiency heat transfer threaded smoke pipe is adopted to obtain the effect of enhanced heat transferr.
Improve thermal efficiency.
Compact structure, small overall size compared with the same type of boiler, saving the capital construction investment of boiler room.
Self cleaning.
Due to the disturbance of flue gas in the pipe,it is not easy to accumulate ash in the smoke pipe and plays the role of self cleaning.

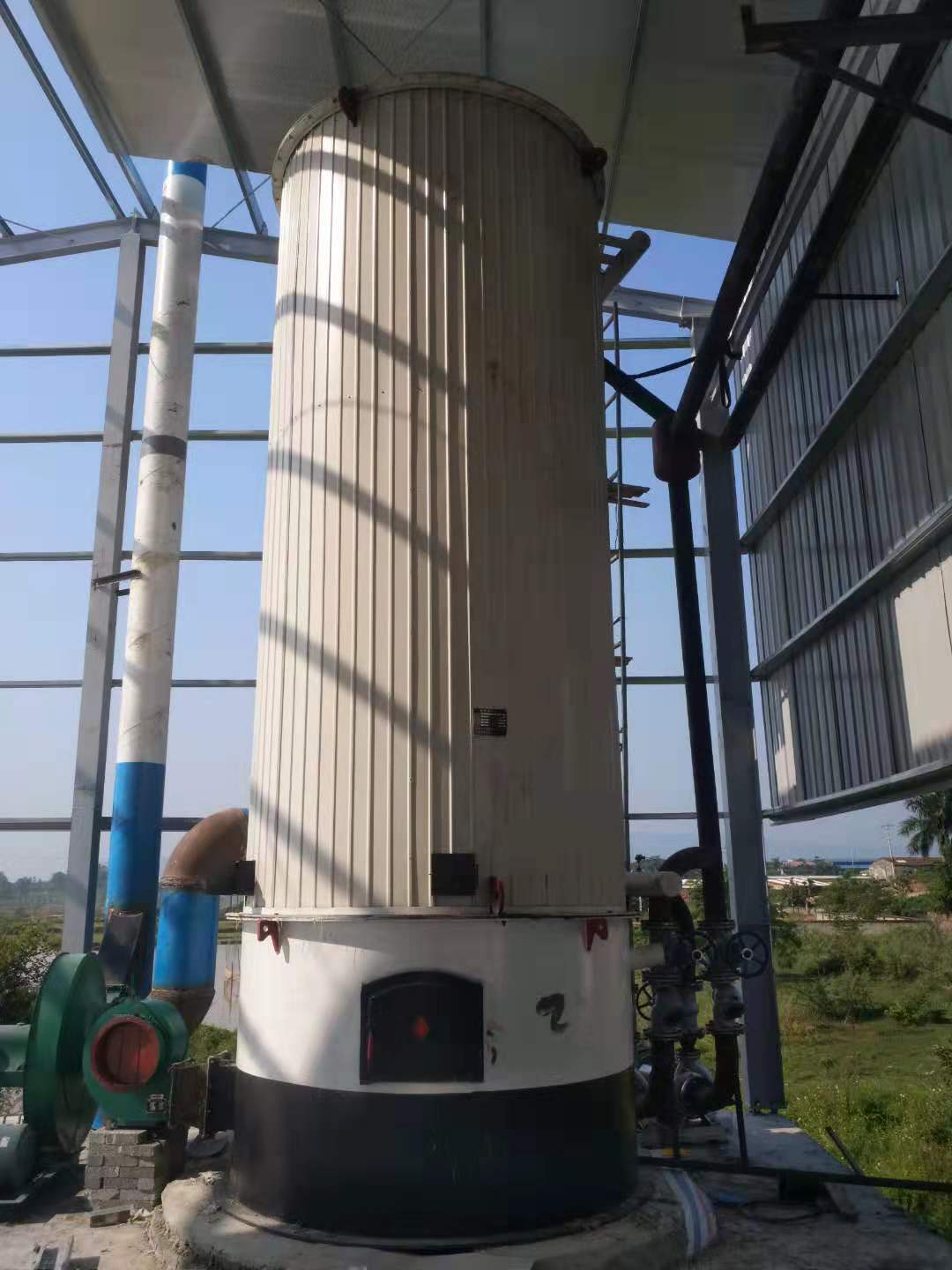

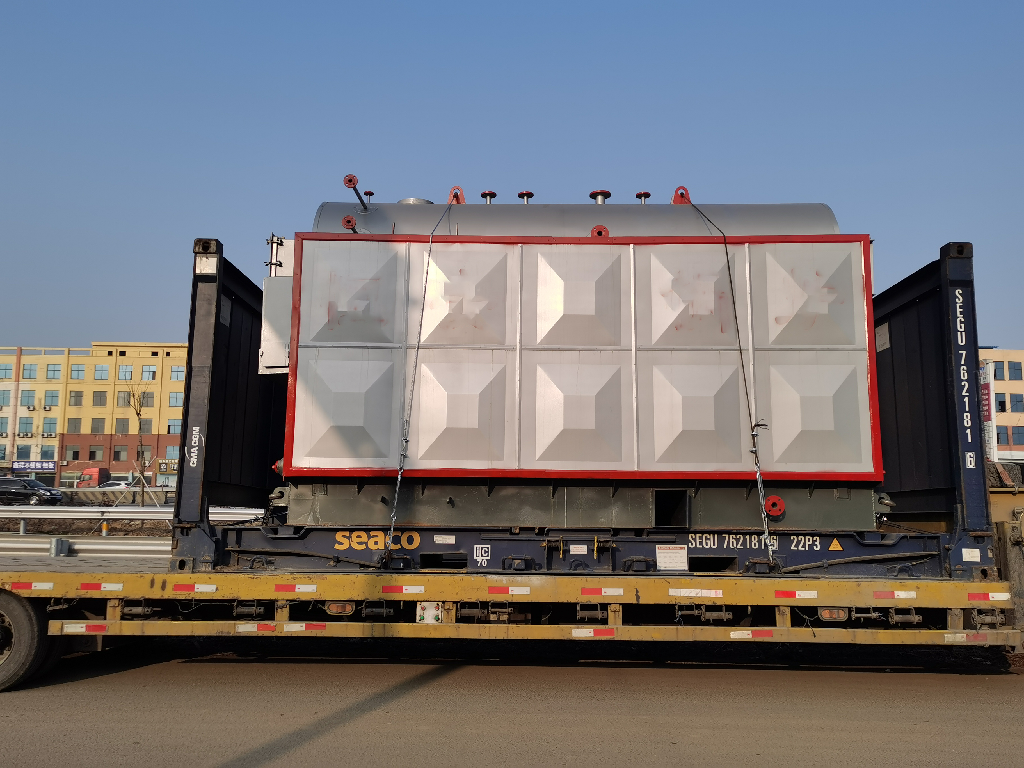

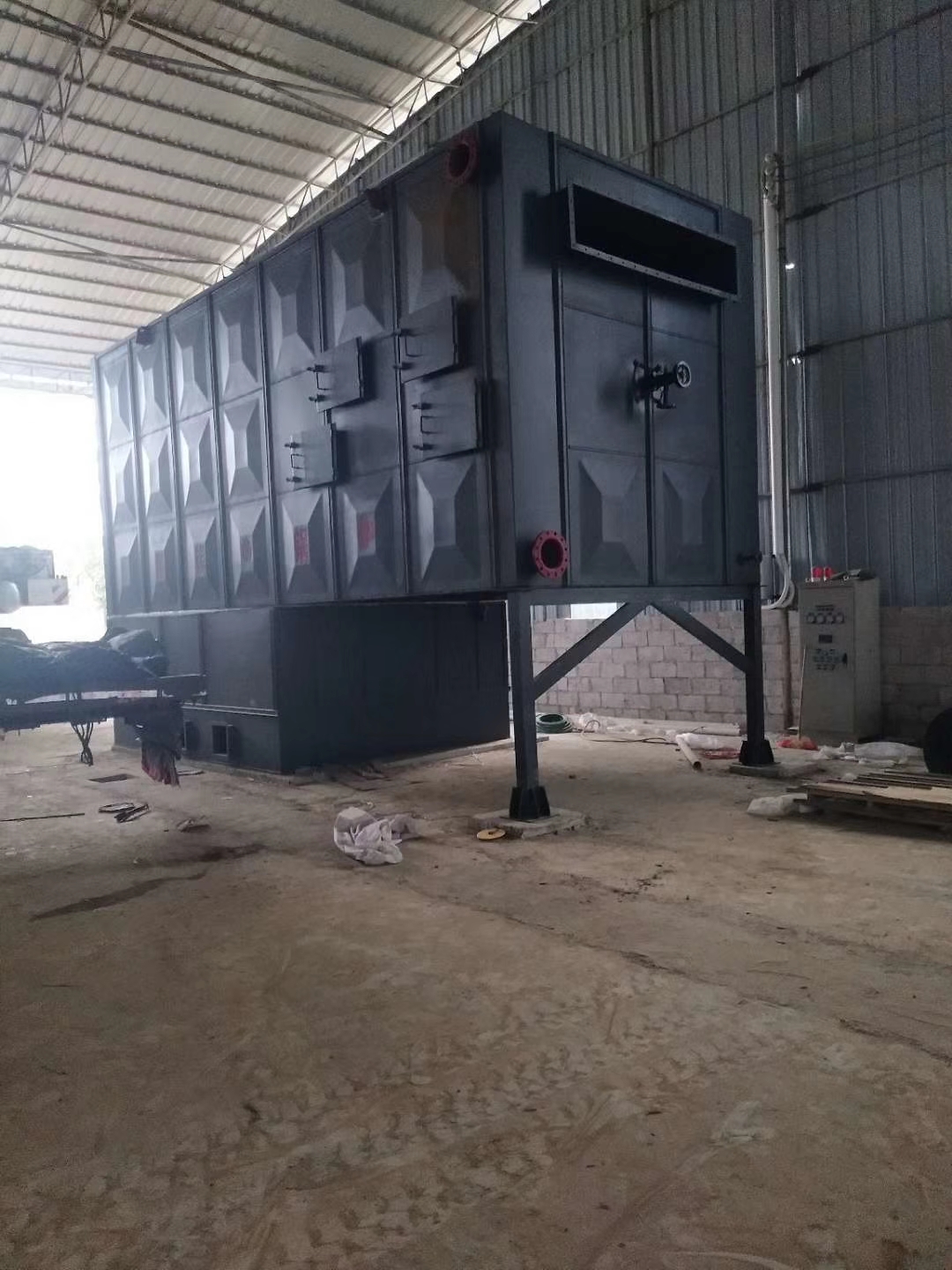

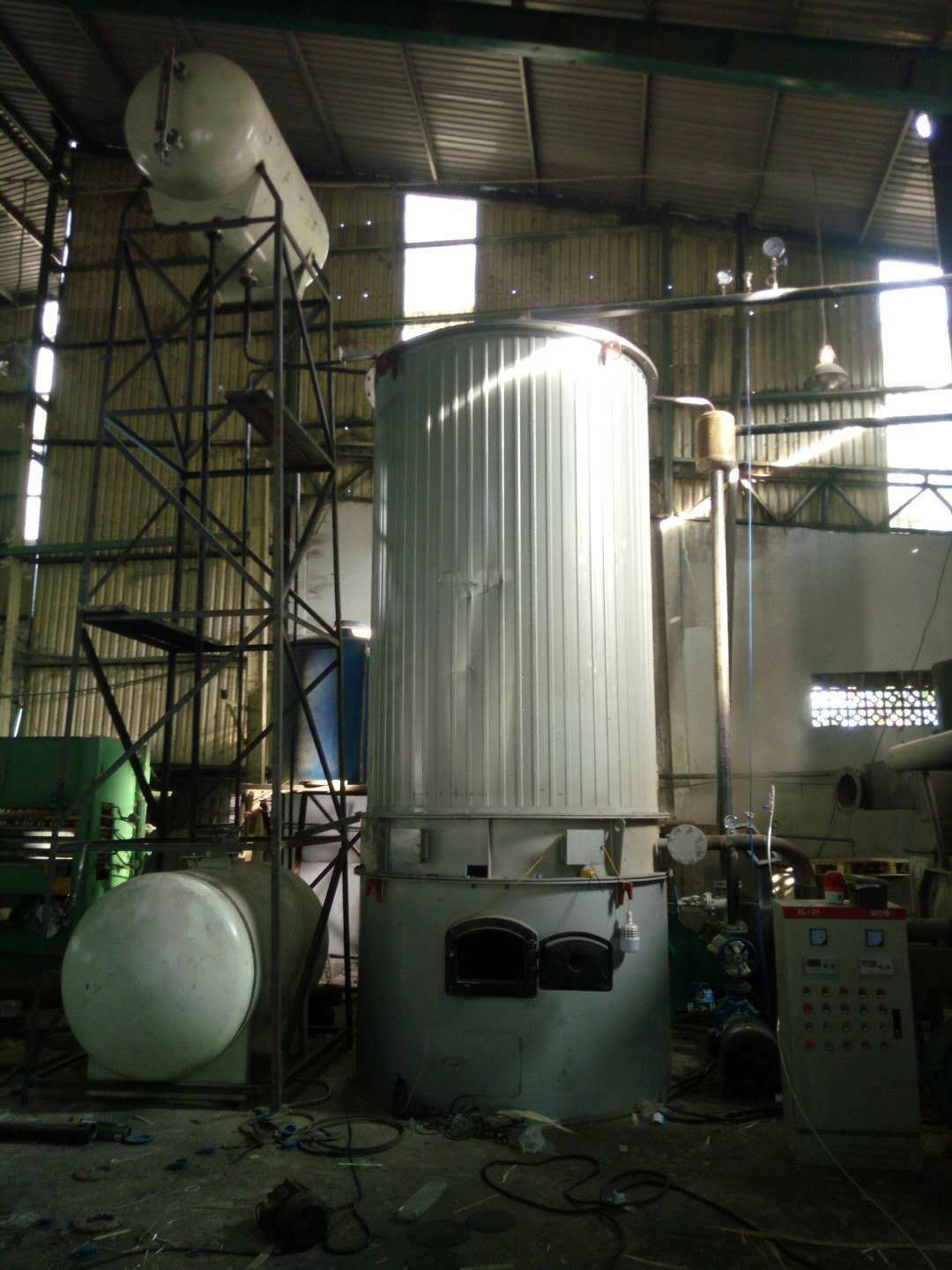

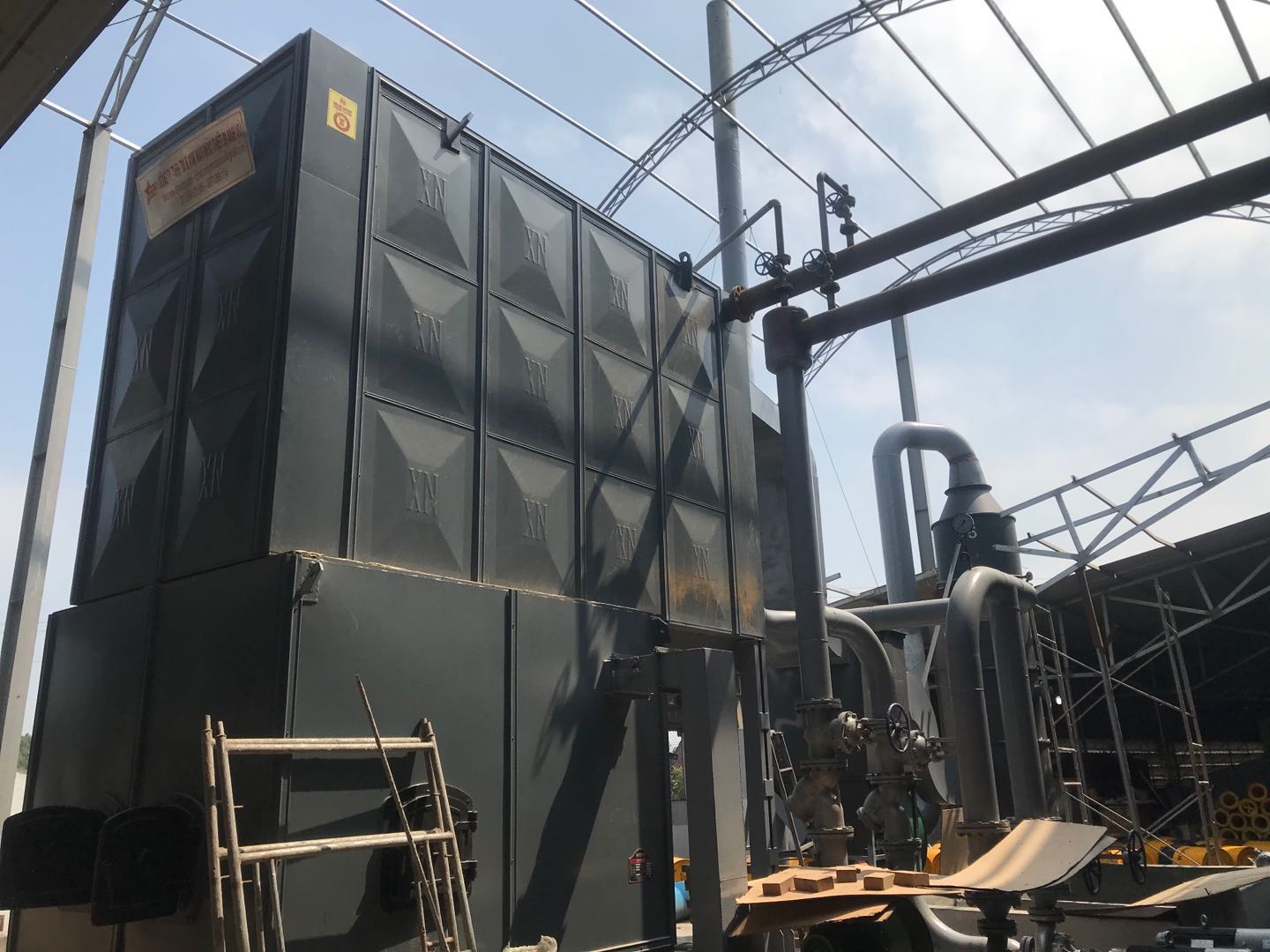

Successful Project

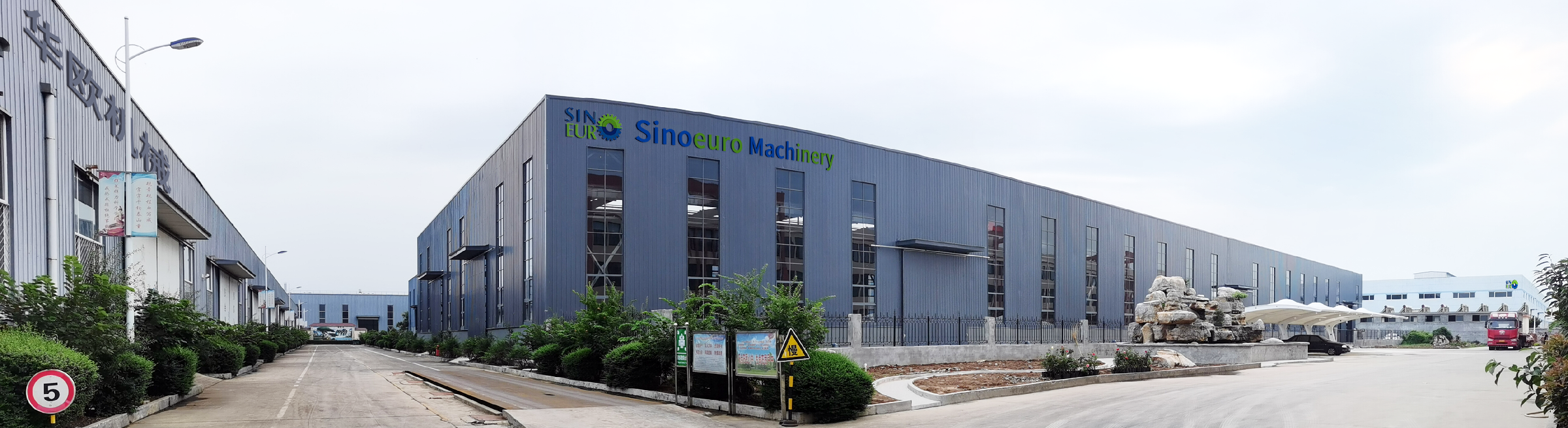

About us
Senoeuro machinery co. Plywood machine manufacturing with 25 years experience.
25 years production experience,The average sales amount is USD8Million. We have already exported more than 200sets of our machine to Turkey, Indonesia,Paraguay, Bulgaria, Norway,Malaysia,India, Gabon, etc.
FAQ
1.Are you a manufacturer?
Answer:We are not only the manufacture but also production expert.
2.Is your machine of good quality?
Answer:I must tell you the truth truthfully,there is no problem with the quality of our machine,please rest assured to use.
3.Will you help us with the installation?
Answer:Of course,we will let the most experienced engineer to install abroad.
4.Is your machine warranty for one year?
Answer:Yes,we can also help you solve problems outside the warranty period.
